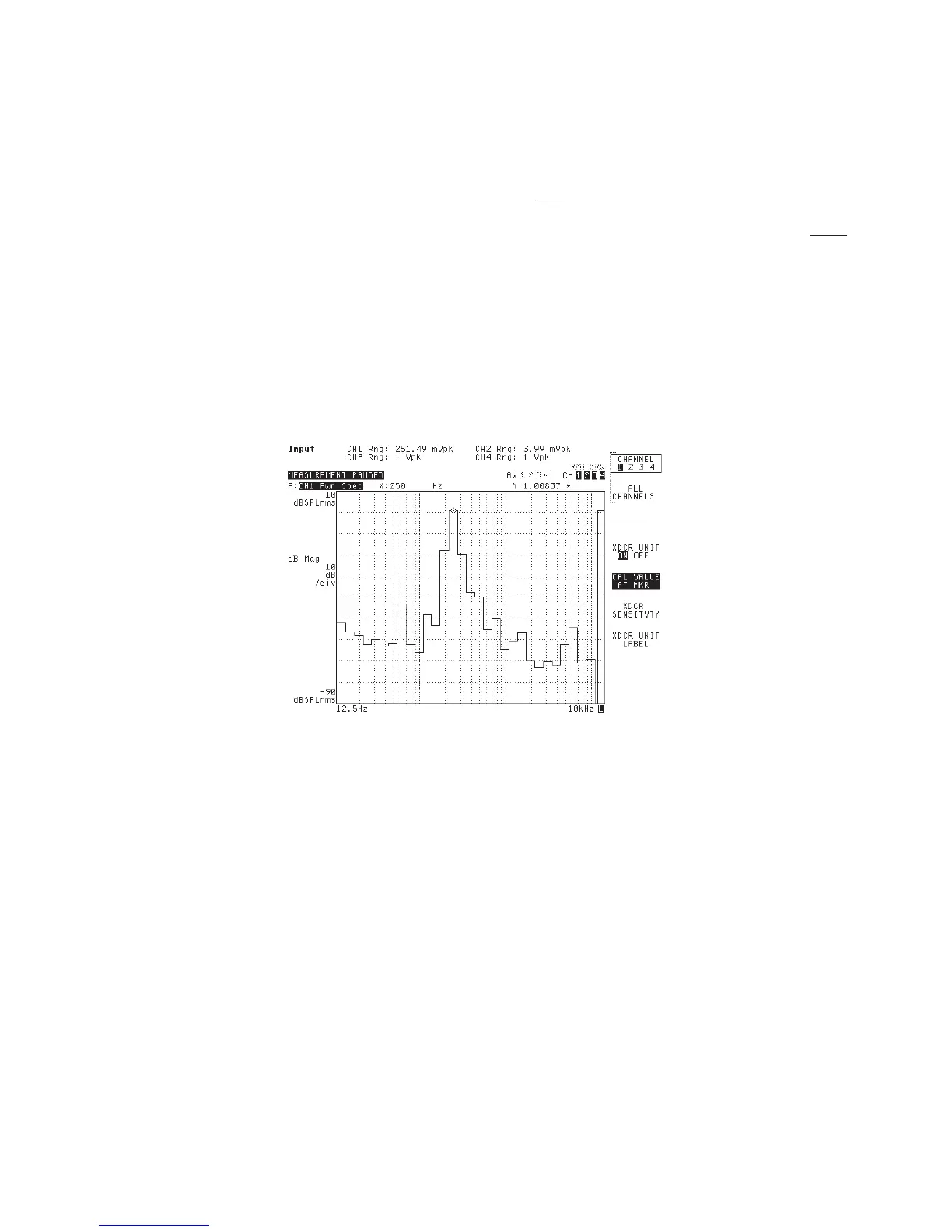

5 Specify the calibration parameters.
Press [
Input
] [
XDCR UNIT CH1 SETUP
]
Press [
XDCR UNIT ON OFF
] to highlight ON.
Press [
XDCR UNIT LABEL
][
PASCAL
].
Press [
Trace Coord
] [
Y UNITS
], then press [
AMPLITUDE PK PP RMS
] to highlight RMS.
Press [
dB REF SETUP
][
dBSPL (20 uPA)
].
Press [
Marker
],[
MARKER TO PEAK
].
Press [
Input
] [
XDCR UNIT CH1 SETUP
].
Press [
CAL VALUE AT MKR
], <number> [
ENTER
].
Specify the calibration parameters to match the calibrator’s specifications.
The values you specify for the transducer units are retained, unless you preset the
analyzer or turn it off.
Agilent 35670A Quick Start Guide Making Measurements
35
