Agilent Technologies 35670A Service Guide

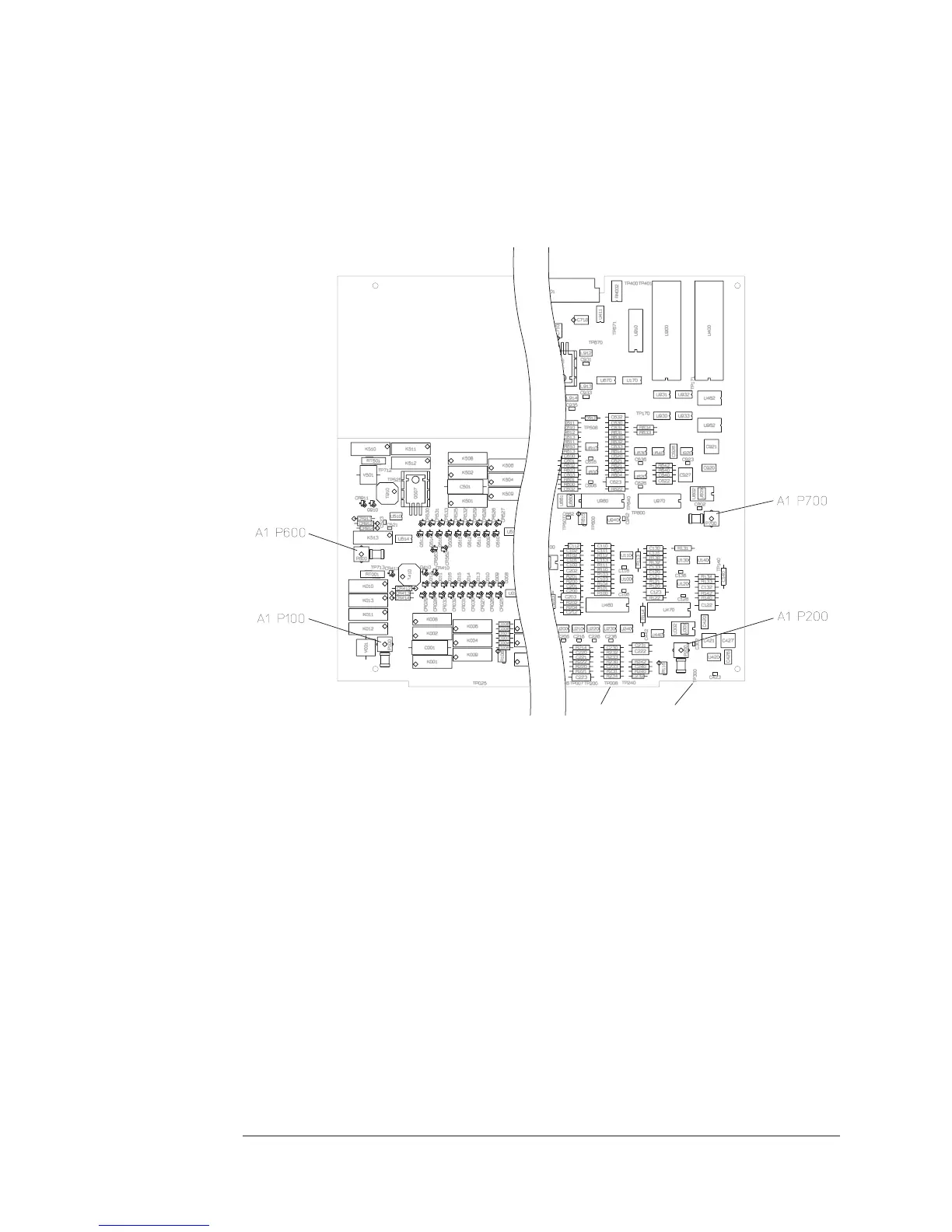

This is only a quick check of the Input assembly. If the Input assembly’s amplitude
is still suspected of failing, set the analyzer to the failing range, impedance, and
frequency. Connect a signal equal to the range setting to the failing channel. When
the input level equals the range level, A1 P200 (channel 1) or A1 P700 (channel 2)
should be 2.83 ±0.28 Vp-p.
Troubleshooting the Analyzer Agilent 35670A
To troubleshoot input and ADC failures
4-52
