Agilent Technologies 35670A Service Guide

To troubleshoot display failures
Use this test to isolate display failures to the A101 Display assembly, A102 DC-DC
Converter assembly, or A7 CPU assembly.
q
Step 1. Check the DC-DC Converter assembly.
•
Set the power switch to off ( O ).
•

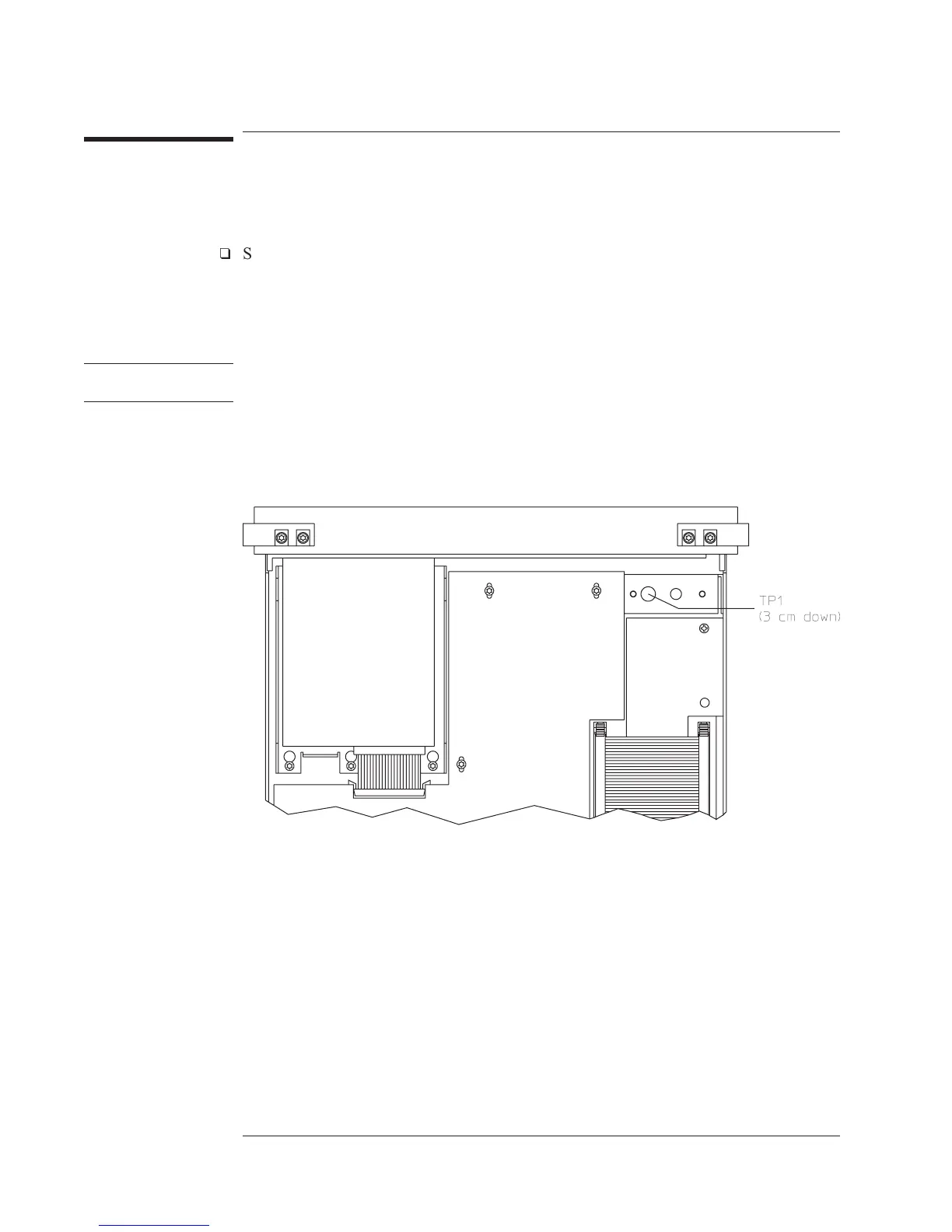

Connect the voltmeter to A102 TP1.
•
Set the power switch to on ( l ).
•
Check that the voltage reads is 210 10 Vdc.
Caution The Display assembly will be damaged if the voltage is at or above 235 Vdc.
•
If the voltage is incorrect, the A102 DC-DC Converter assembly is probably
faulty.
Troubleshooting the Analyzer Agilent 35670A
To troubleshoot display failures
4-22
