To adjust the source
This procedure adjusts the source dc offset on the A5 Analog assembly.
Equipment Required: Multimeter
BNC-to-Dual Banana Cable
•
Connect the multimeter to the analyzer’s rear-panel SOURCE connector.
•
Press the following keys:
[
System Utility ]
[
MORE ]
[
SERVICE TESTS ]
[
ADJUSTMTS ]
[
SOURCE ADJUSTMNT ]
[
DC OFFSET ]
•

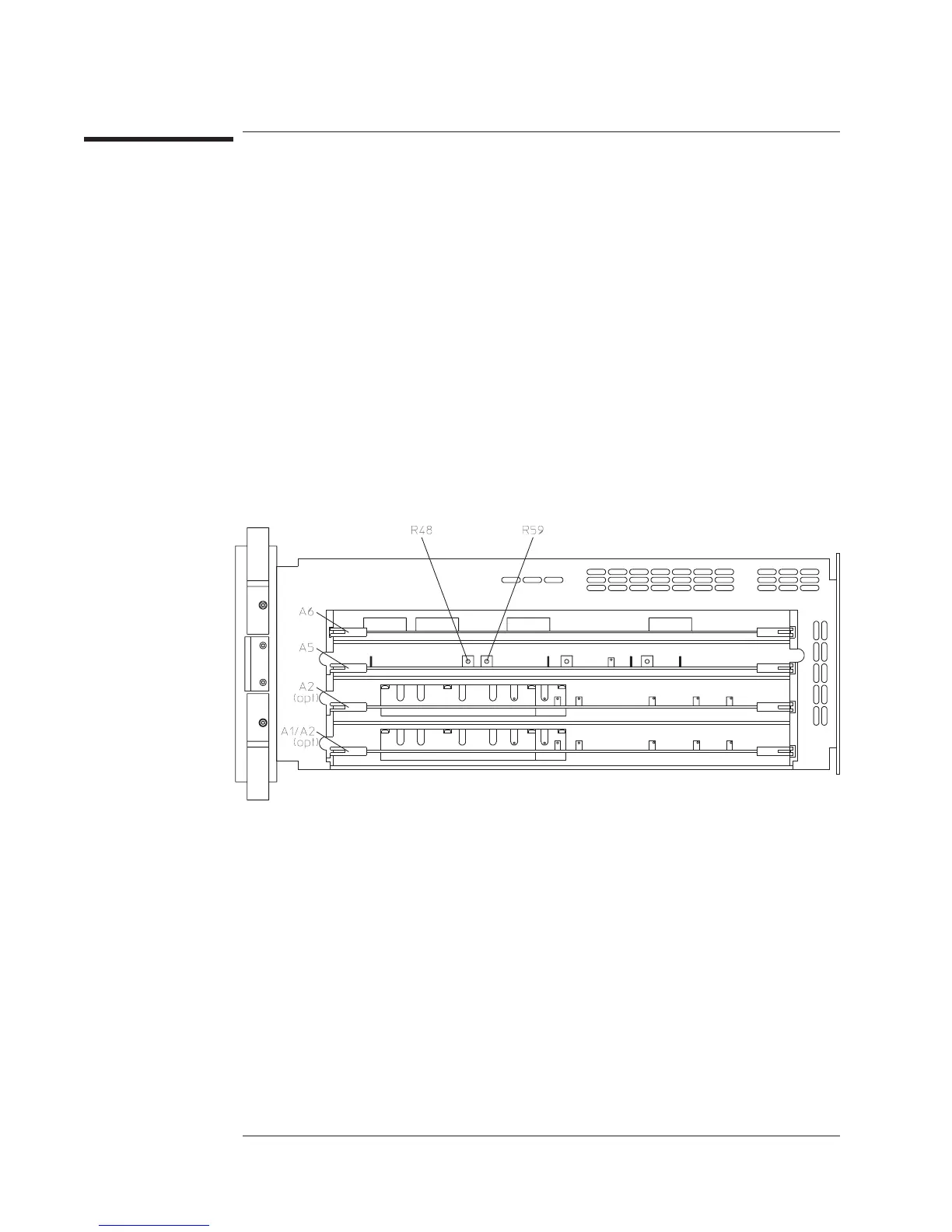

Adjust A5 R48 for 0 Vdc±1 mV.
•
Press the [
FILTER DC OFFSET ] softkey.
•
Adjust A5 R59 for 0 Vdc ±1 mV.
Adjusting the Analyzer Agilent 35670A
To adjust the source
5-6
