To connect the optional keyboard
The analyzer may be connected to an optional external keyboard. The keyboard
remains active even when the analyzer is not in alpha entry mode. This means that
you can operate the analyzer using the external keyboard rather than the front panel.
Pressing the appropriate keyboard key does the same thing as pressing a hardkey or a
softkey on the analyzer’s front panel.
•
Set the power switch to off (
O ).
Caution Do not connect or disconnect the keyboard cable with the line power turned on ( l ).
Connecting or disconnecting the keyboard while power is applied may damage the
keyboard or the analyzer.
•

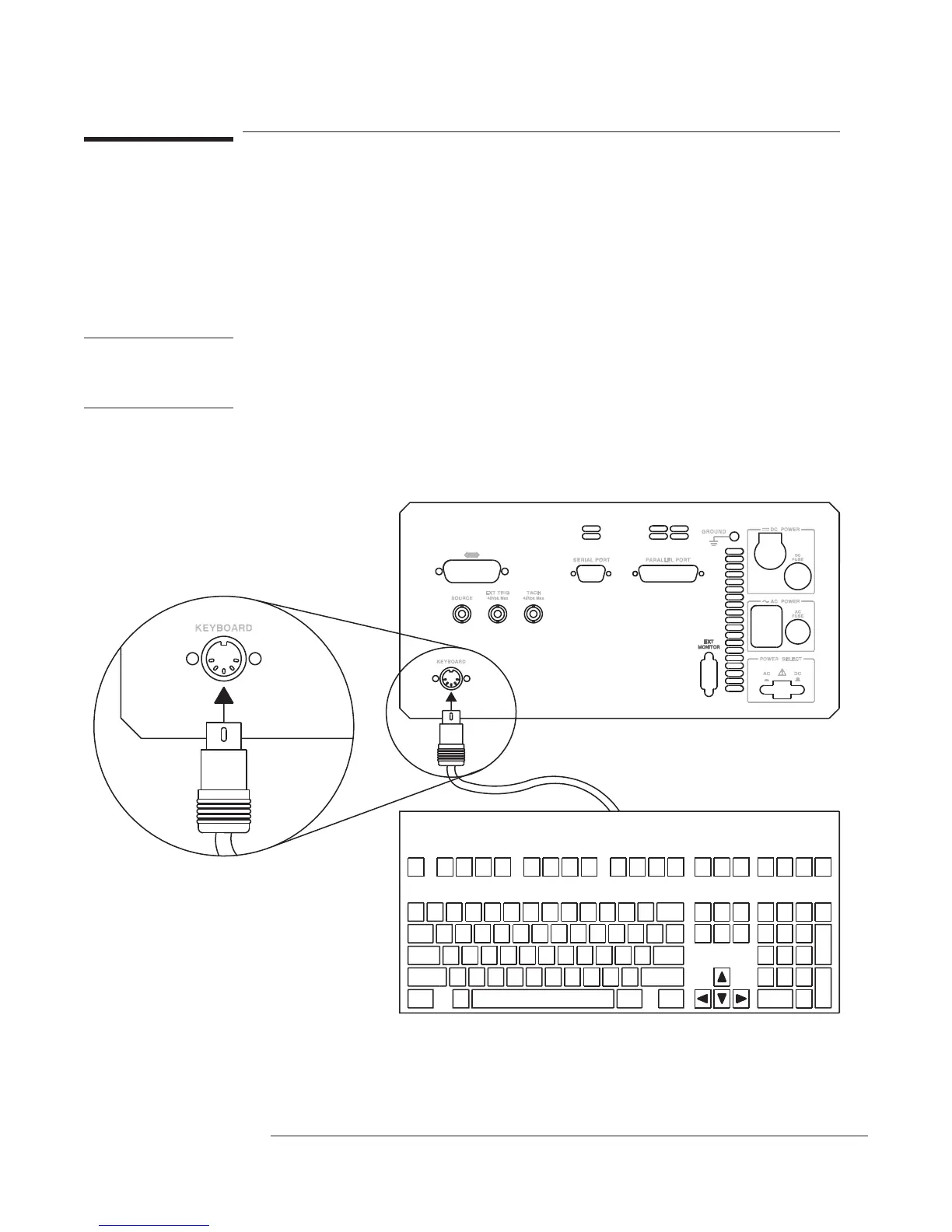

Connect the round plug on the keyboard cable to the KEYBOARD connector
on the analyzer’s rear panel. Make sure to align the plug with the connector
pins.
Preparing the Analyzer for Use Agilent 35670A
To connect the optional keyboard
2-14
