8 Agilent 5517B/BL/C/D/DL/FL User’s Guide
1 General Information
1
For use with a customer-supplied power supply.
2
Due to higher reference frequencies (and corresponding higher velocities of motion), laser heads with
reference frequencies above that of the 5517C do not work with the 10895A or 10885A.
3
For use with the 10884B Power Supply.
4
The N1251 is only available in model suffix B.

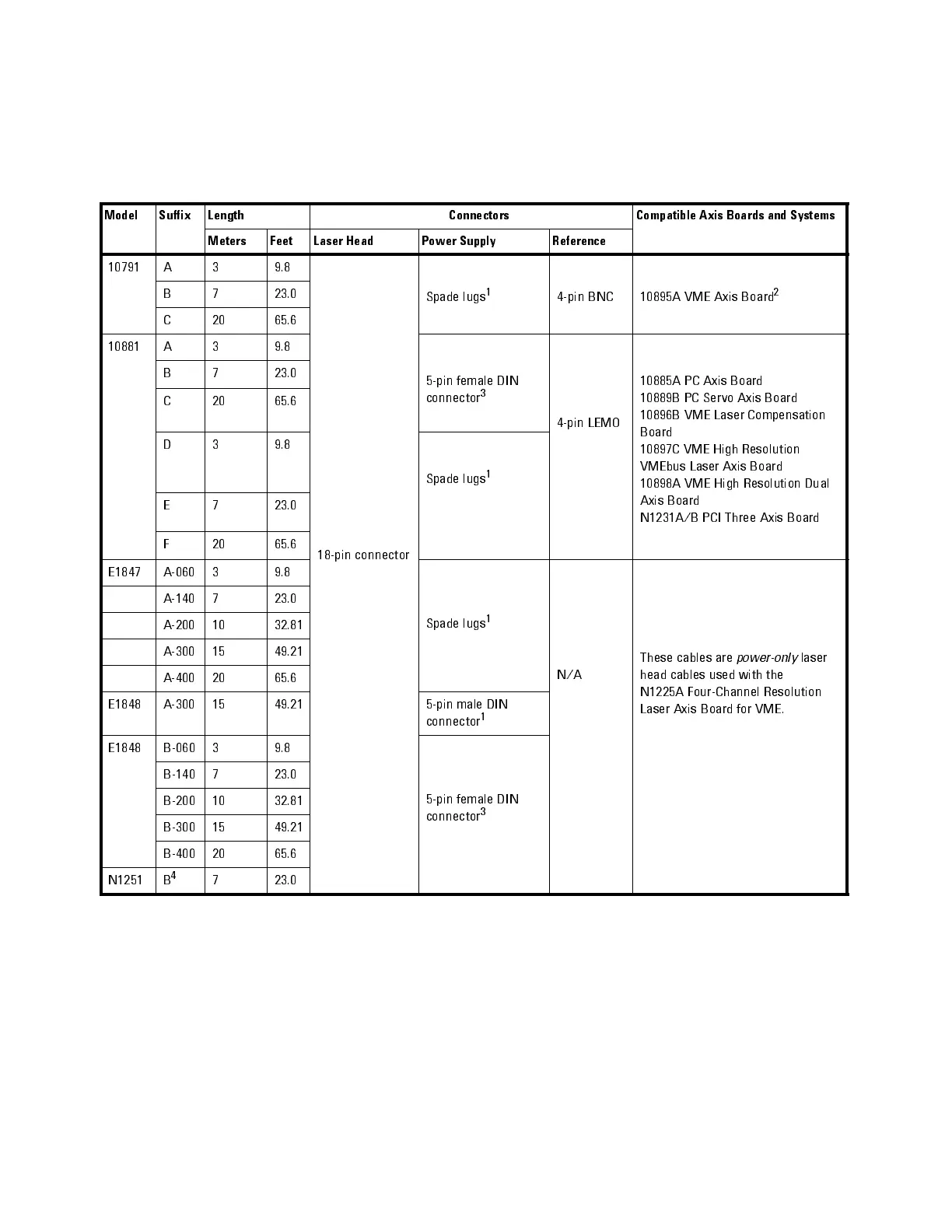

Tab le 4 Laser Head Cables
Model Suffix Length Connectors Compatible Axis Boards and Systems
Meters Feet Laser Head Power Supply Reference
10791 A 3 9.8
Spade lugs
1
4-pin BNC 10895A VME Axis Board
2
B 7 23.0
C 20 65.6
10881 A 3 9.8
18-pin connector
5-pin female DIN
connector
3
4-pin LEM O
10885A PC Axis Board
10889B PC Servo Axis Board
10896B VME Laser Compensation
Board
1089 7C VME High Re so lu tion
VMEbus Laser Axis Board
10898A VME High Resolution Dual
Axis Board
N1231A/B PCI Three Axis Board
B 7 23.0
C 20 65.6
D3 9.8
Spade lugs
1
E 7 23.0
F 20 65.6
E1847 A-060 3 9.8
Spade lugs
1
N/A
These cables are
power-only
laser
head cables used with the
N1225A Four-Channel Resolution
Lase r Axis Boa rd for VME .
A-140 7 23.0
A-200 10 32.81
A-300 15 49.21
A-400 20 65.6
E1848 A-300 15 49.21 5-pin male DIN
connector
1
E1848 B-060 3 9.8
5-pin female DIN
connector
3
B-140 7 23.0
B-200 10 32.81
B-300 15 49.21
B-400 20 65.6
N1251 B
4
7 23.0
