6 Using the Laser Head in a System

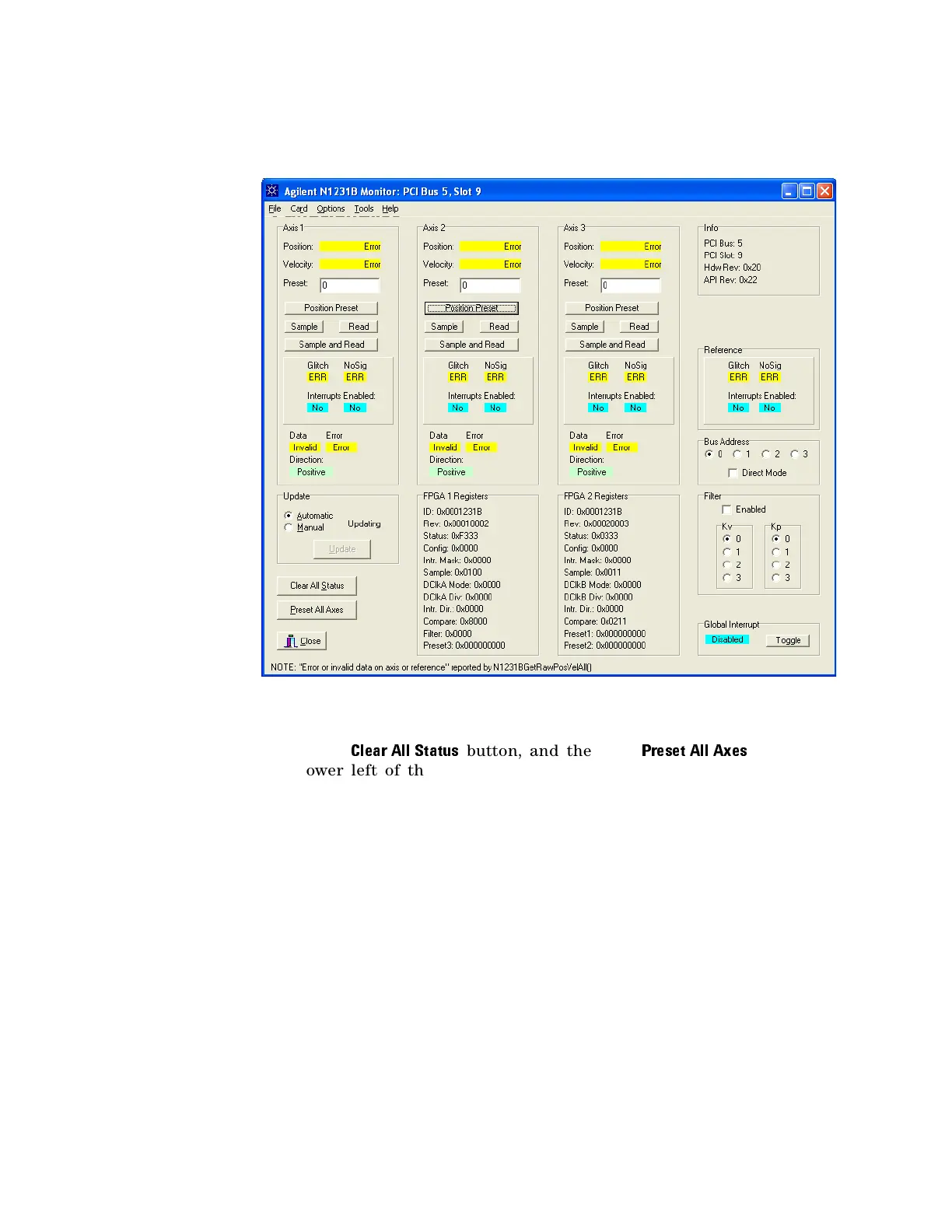

Figure 19 Monitor screen after opening the application
5 Press the
Clear All Status
button, and then the
Preset All Axes
button in
the lower left of the screen.
The position in uncompensated raw lambda/2048 counts
*
can now be
read in the Position boxes corresponding to axes that have valid
measurement signals as shown in Axis 2 in Figure 20.
* These raw count values must be multiplied by 0.31nm/count and a compensation number (0.999728766 for
standard air) to convert them into a measurement value.
