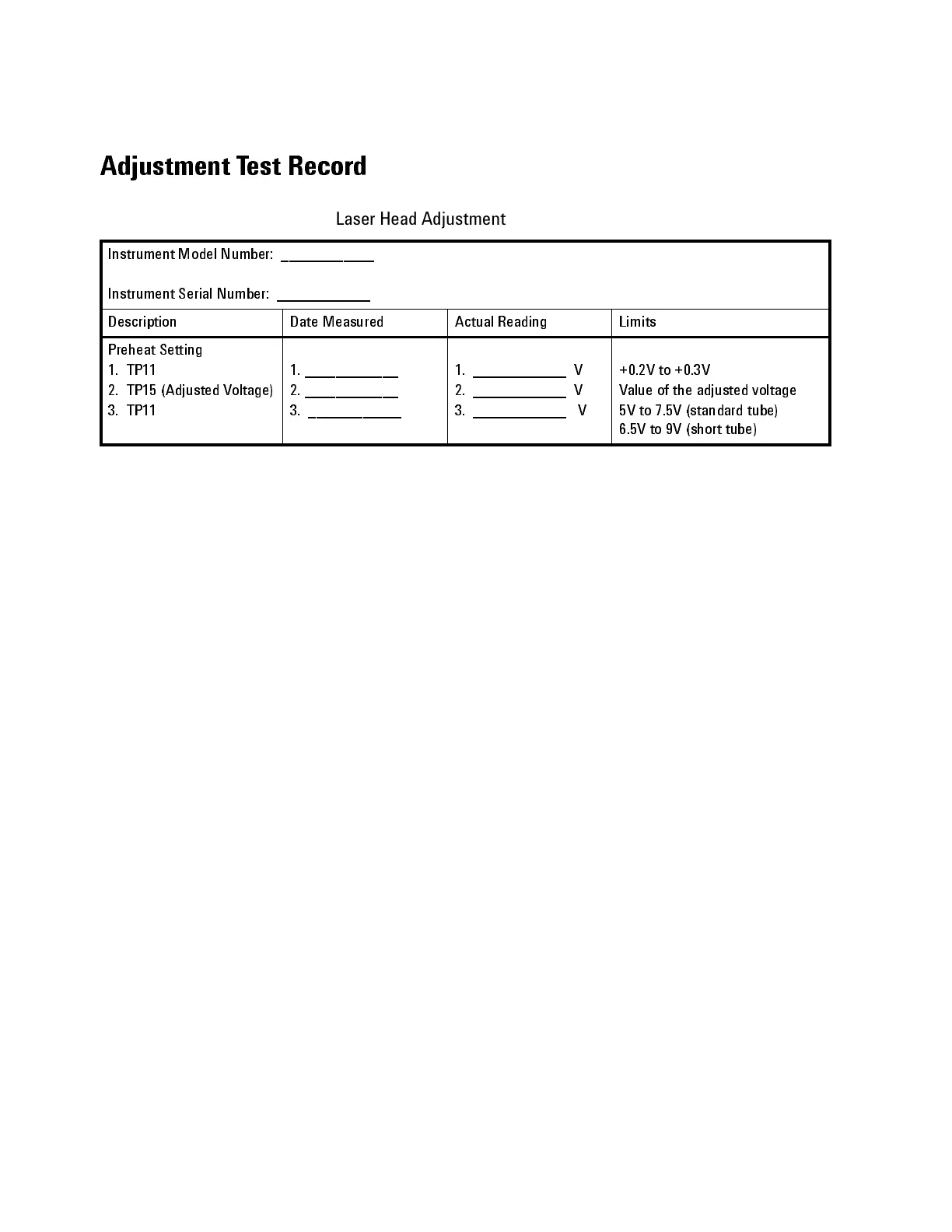

Adjustment Test Record
Laser Head Adjustment Test Record
Instrument Model Number: ____________
Instrument Serial Number: ____________
Desc ri ptio n Dat e Me asu r ed Actu al Readin g Limi ts
Preheat Setting
1. TP11
2. TP15 (Adjusted Voltage)
3. TP11
1. ____________
2. ____________
3. ____________
1. ____________ V
2. ____________ V
3. ____________ V
+0.2V to +0.3V
Value of the adjusted voltage
5V to 7.5V (standard tube)
6.5V to 9V (sh or t tube )
