20 Agilent 5517B/BL/C/D/DL/FL User’s Guide
3 Installation

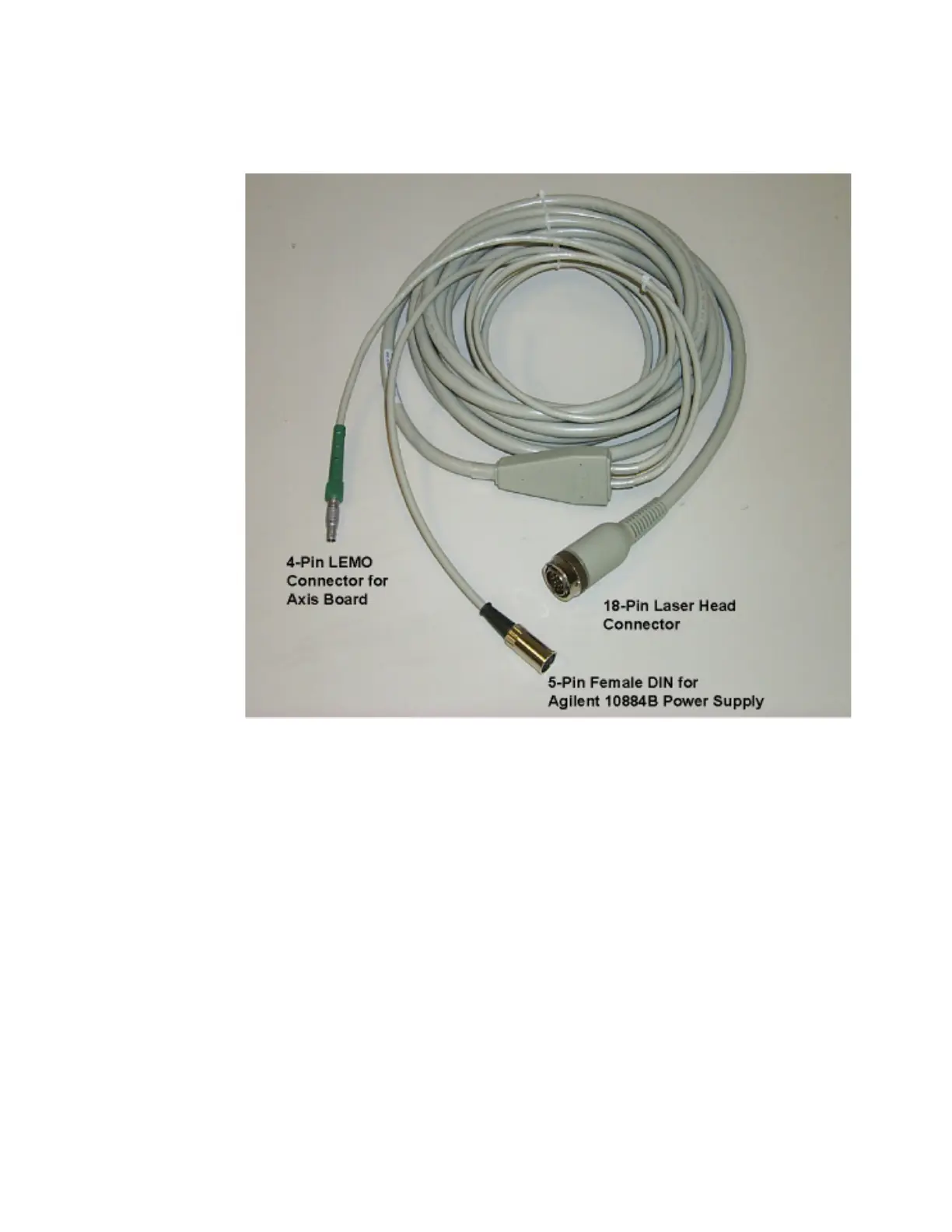

Figure 3 Agilent N1251B High Performance Laser Head Cable
6 Connecting Agilent 10881D/E/F to a customer- supplied power
supply:
a Connect the three spade lugs to the terminals of a power supply
other than the 10884B as shown in Table 5.
b Connect the power supply to ac line and turn it on.
