Agilent Technologies 5517B - Table 6 18-Pin Laser Head Cable and Rear Panel Connector Pin Assignments

24 Agilent 5517B/BL/C/D/DL/FL User’s Guide
3 Installation

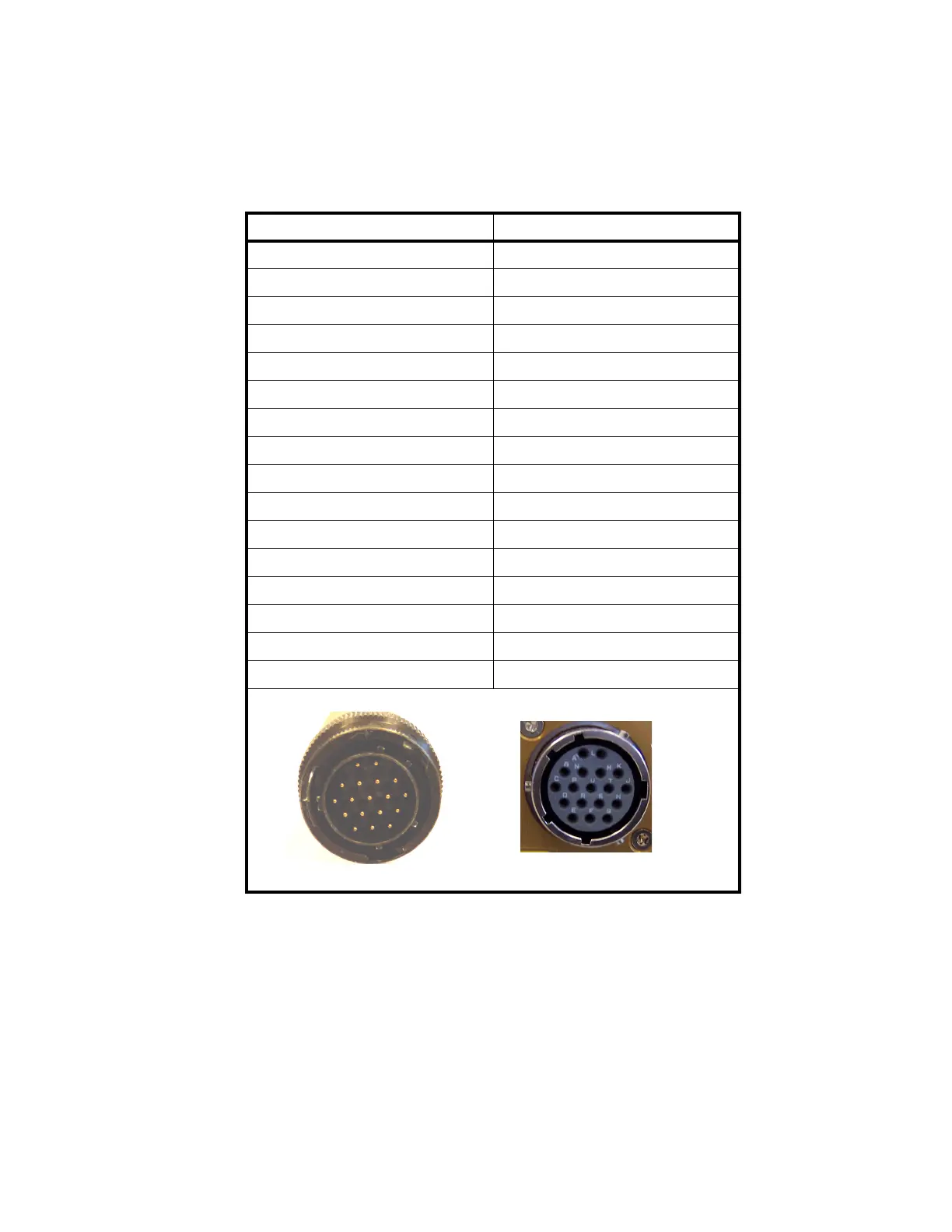

Tab le 6 18-Pin Laser Head Cable and Rear Panel Connector pin assignments
Pin Number Signal Name
A No connection
B ~MEAS (No connection)
C MEAS (No connection)
D Signal Return
E ~REF
F REF
G, H Ground
J +15V Sense
K +15 Volts
L –15 Volts
M +15 Volts
N, P Cable Shield
R Signal Return
S Ground
T +15 Volts
U Cable Shield
18-pin (plug) cable connector
18-pin (socket) rear connector
