Released: March 2004 6850 Series II GC User Information page 226 of 256
6. To install the needle support assembly, select the proper type using
Figure 45. Hold it in your right hand and insert the upper end of the rod
into the plastic guide to the right of the plunger carrier loop.

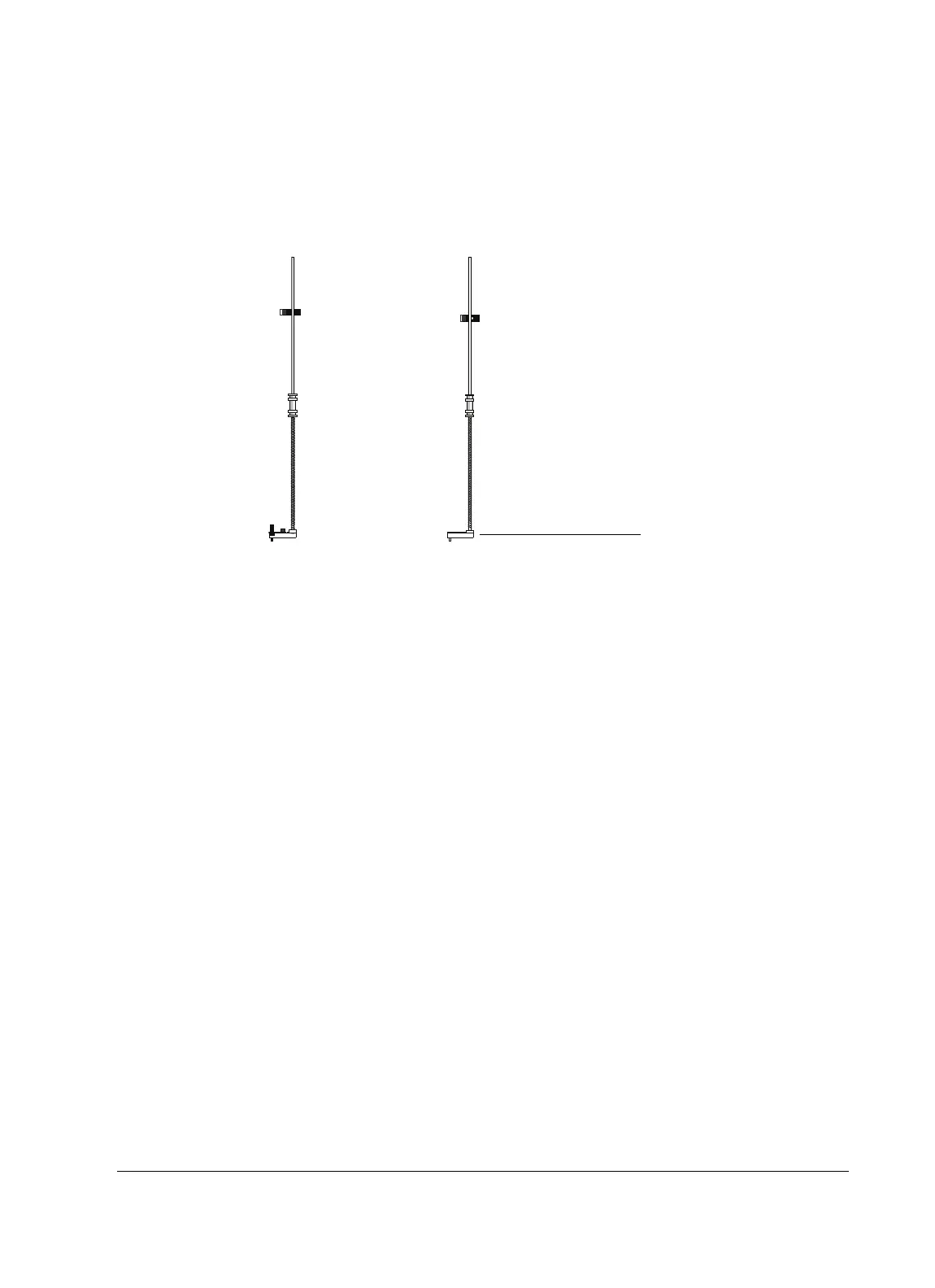

Figure 45. Needle support assembly
7. Turn the needle support assembly so that the flat surface of the slide glides
up and down the syringe carriage tracks as shown in Figure 46.
530 µm
Needle support foot
250-µm or 320-µm
(Agilent accessory 18599T) (Standard)
