32 Agilent 8453 Dissolution Testing System Installing and Operating Manual
2Setting Up
Installing a Multicell-transport-based Sampling System
2 Connect the flow cell to the pump, see Figure 6—connect the 1.0 m tubing
with the short cell fitting to the outlet of the flow cell, and the colored
fitting to a union. Connect the conical adapter to the union. Insert a conical
adapter into the pump tubing on the inlet side of the pump.

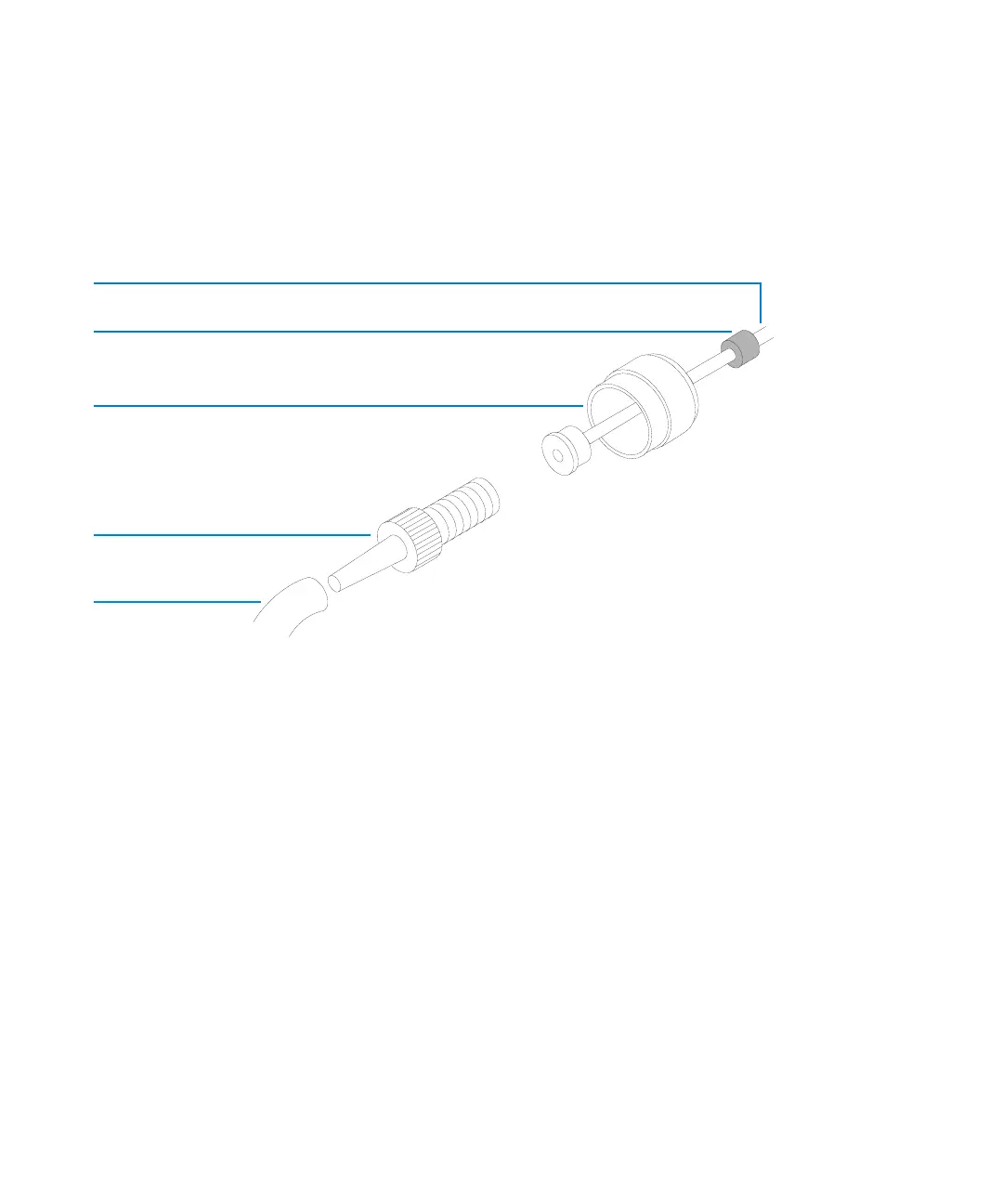

Figure 6 Connecting Flow Cell to Pump
Colored heat-shrunk
sheath on tubing
Fitting
Pump tubing
Conical adaptor
Tubing to outlet on flow cell
