Agilent Technologies 8890 Maintaining Manual

11 Maintaining the FID
Exploded Parts Views of the Flame Ionization Detector
Maintaining Your GC 183

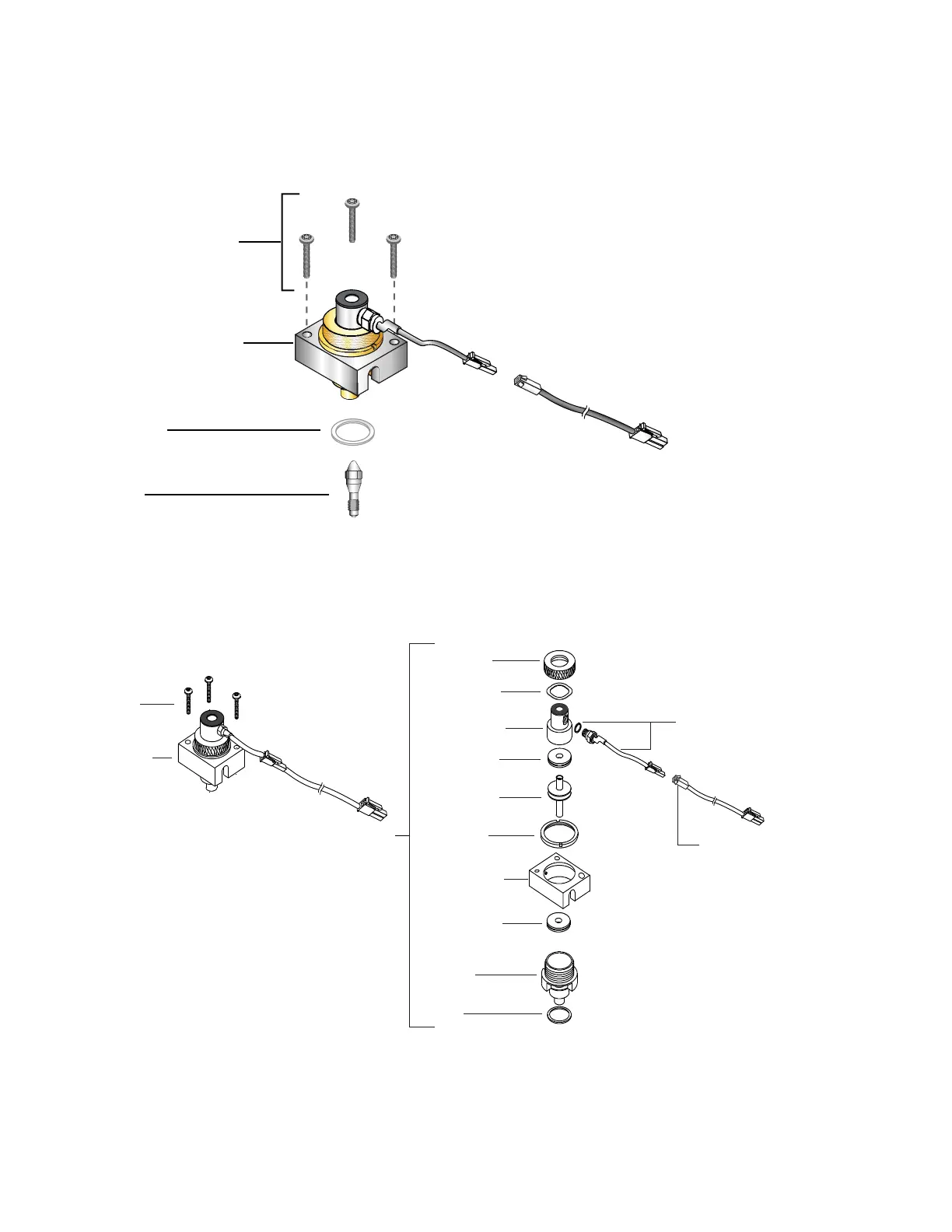

Figure 41. FID exploded parts view
Figure 42. FID collector assembly exploded parts view
25-mm screws
Collector assembly
Gasket
Jet
25-mm
screws
Collector
assembly
Collector nut
Spring washer
Ignitor castle
Upper collector
insulator
Collector body
Spanner nut
(collector)
Collector mount
Lower collector
insulator
Collector
housing
Gasket
Ignitor (glow plug)
assembly with
O-ring
Ignitor cable
assembly
