Agilent Technologies 8890 - Exploded Parts View of the Electron Capture Detector

14 Maintaining the ECD
Exploded Parts View of the Electron Capture Detector
232 Maintaining Your GC
Exploded Parts View of the Electron Capture
Detector

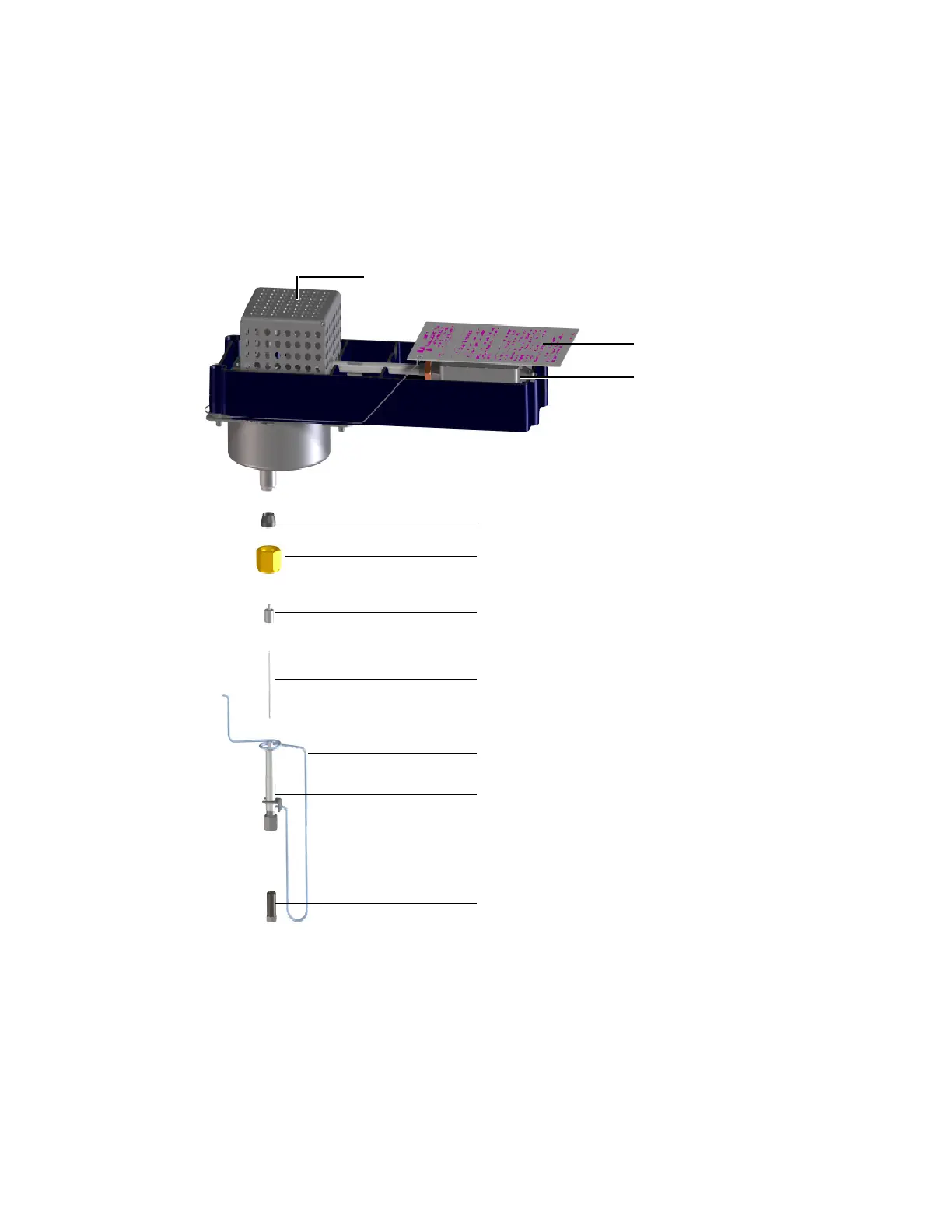

Figure 47. Electron Capture Detector (ECD) exploded parts
Column nut
Makeup gas adapter
Liner
Cap
Adapter nut
Ferrules
Warning tag
Electrometer
Perforated cover
Makeup gas line
