Agilent Technologies 8890 - Exploded Parts View of the Split;Splitless Inlet

5 Maintaining the Split/Splitless Inlet
Exploded Parts View of the Split/Splitless Inlet
Maintaining Your GC 53
Exploded Parts View of the Split/Splitless Inlet

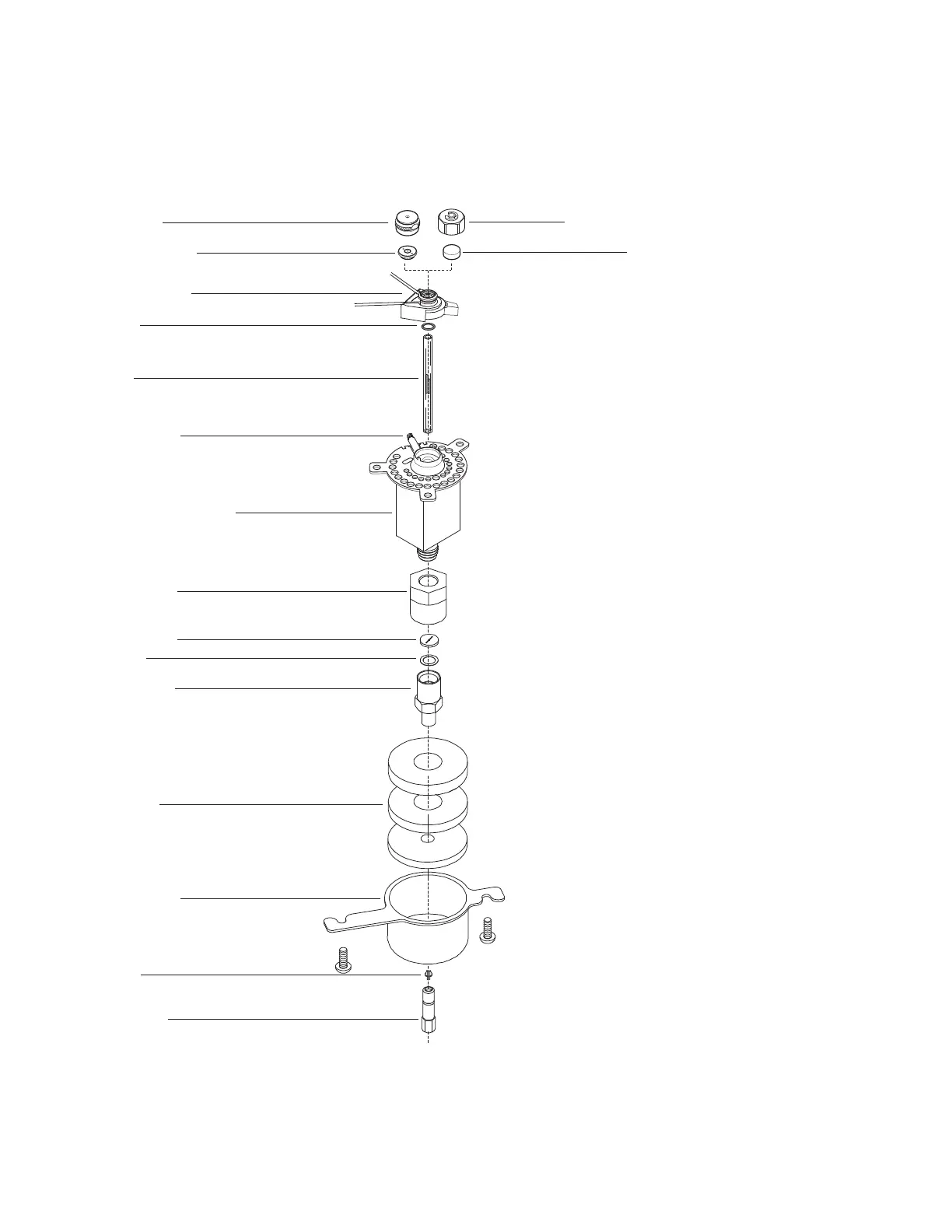

Figure 20. Split/splitless inlet exploded parts
Column nut
Ferrule
Insulation cup
Insulation
Reducing nut
Washer
Inlet gold seal
Retaining nut
Septum
Septum retainer nut
Split/splitless inlet body
Liner
Split vent line
Insert assembly
O-ring
Merlin Microseal
Merlin cap
