Exploded Parts View of the Nitrogen-Phosphorus Detector
212 Maintaining Your GC
Exploded Parts View of the Nitrogen-Phosphorus
Detector

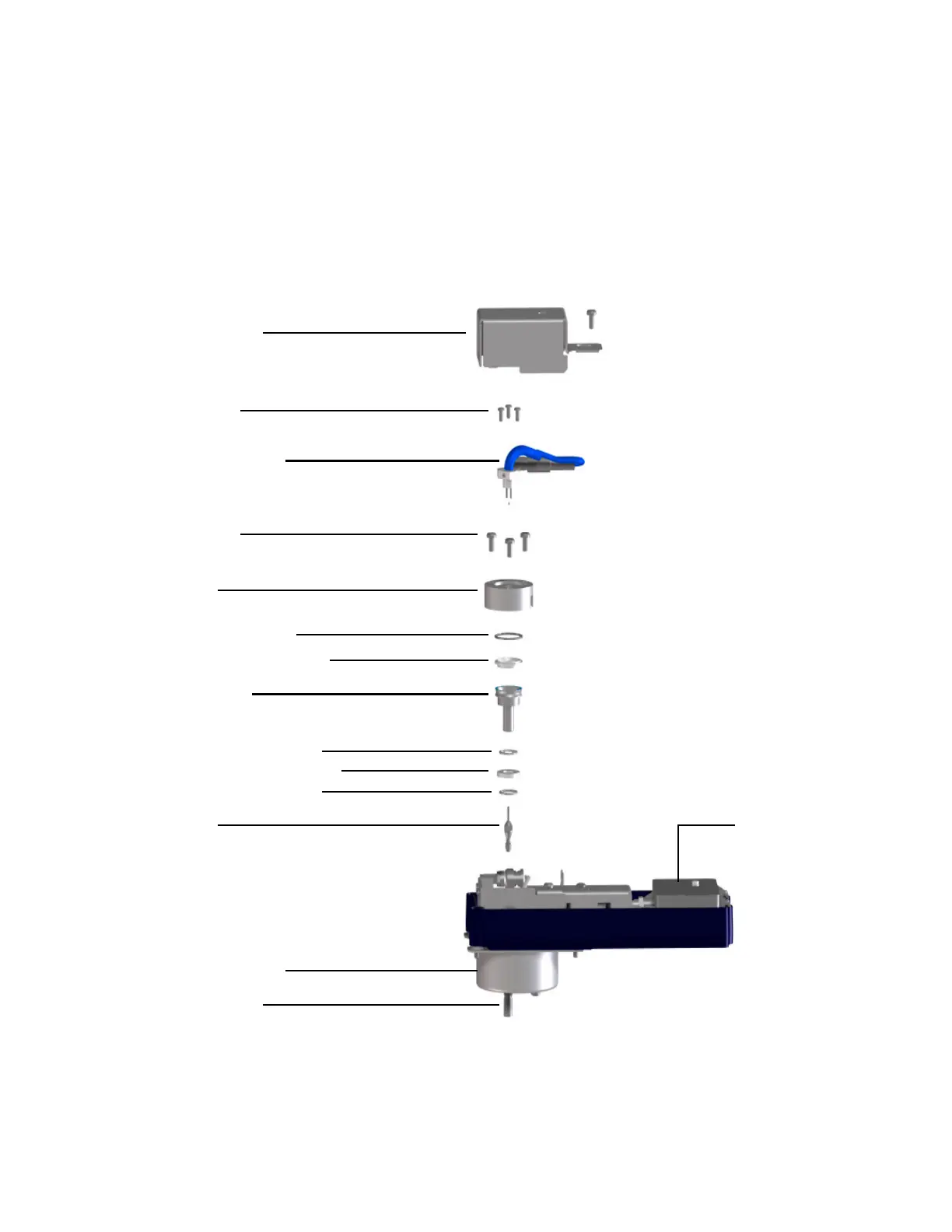

Figure 43. Nitrogen-Phosphorus Detector (NPD) exploded parts
NPD cover
Screws
Bead assembly
Screws
Lid
Metal C-ring, top
Ceramic insulator, upper
Collector
Metal C-ring, bottom
Ceramic insulator, lower
Metal C-ring, bottom
Jet
Electrometer
Column nut
Insulation cover
