LCD touch screen

Agilent 990 Micro GC User Manual 107

Overview

You can see how many channels are installed, the instrument status, column actual temperature,

injector actual temperature and actual pressure, as well as other information.

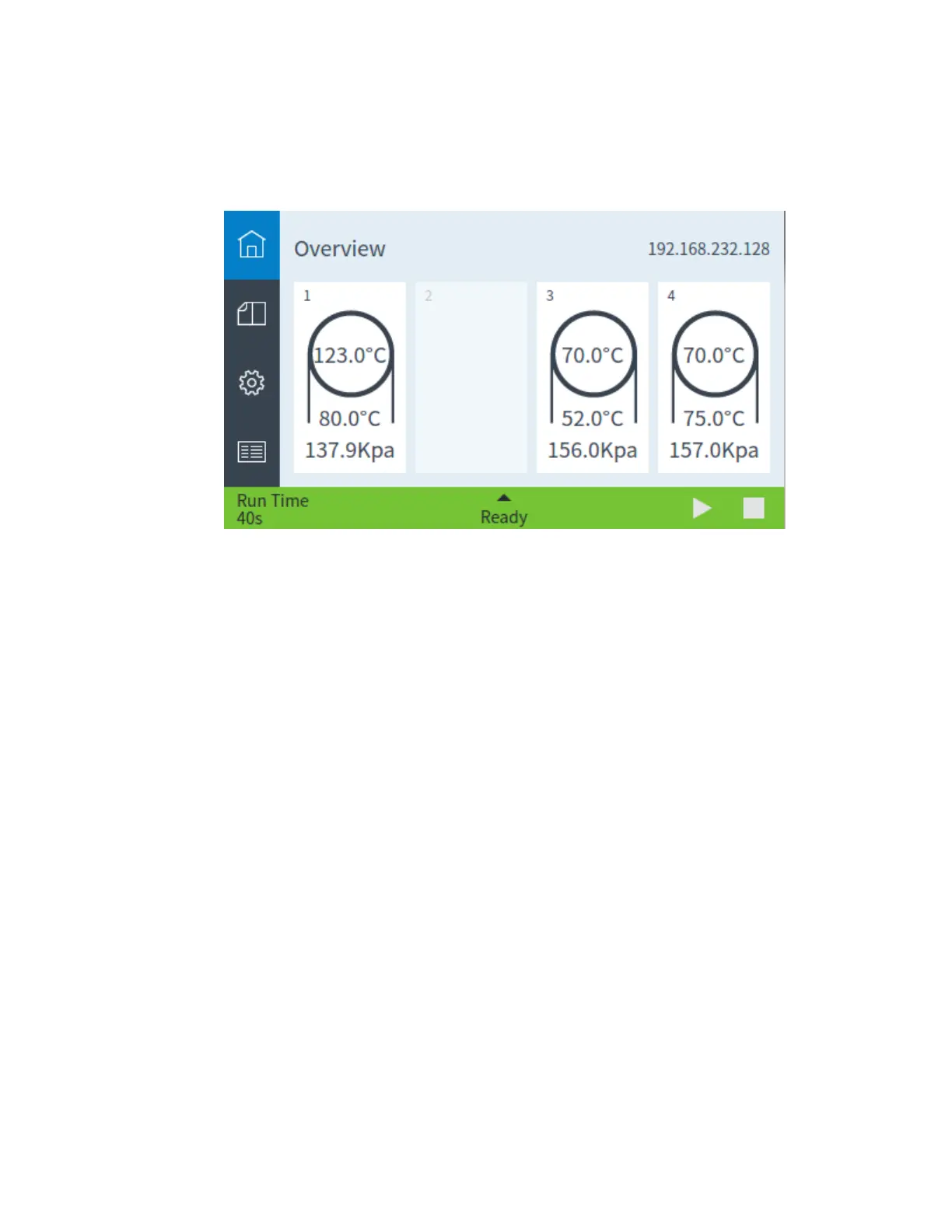

Figure 41. Overview
