Agilent Technologies 990 - Rear View

2 Instrument Overview
Rear View
Agilent 990 Micro GC User Manual 19
Rear View

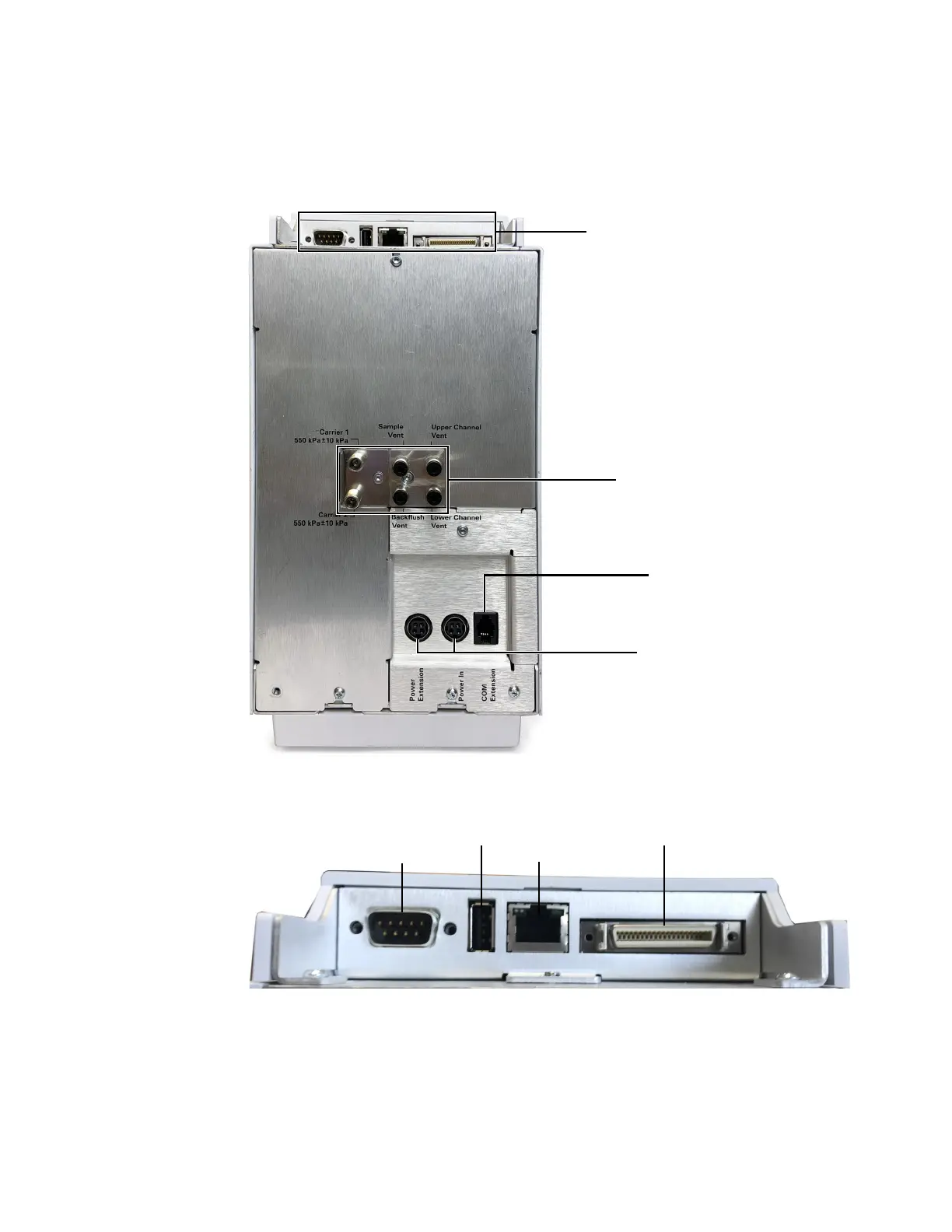

Figure 4. Rear view of the Agilent 990 Micro GC
Figure 5. Rear communication ports of the Agilent 990 Micro GC top assembly
Rear communication ports
(top assembly)
CAN connection
between the GC and
Channel Extension Cabinet
Power connectors
Combined carrier gas
and vent plate
(Figure 6 shows
in detail.)
USBRS-232
(COM-1)
Ethernet
(LAN)
Digital and Analog I/O
