11 Micro GC Natural Gas Analyzer

Carrier Gas Type Configuration

164 Agilent 990 Micro GC User Manual

Carrier Gas Type Configuration

The Agilent 990 Micro GC - Natural Gas Analyzers are factory tuned using the carrier gas helium.

When analysis of helium is required, the carrier gas must be changed to argon.

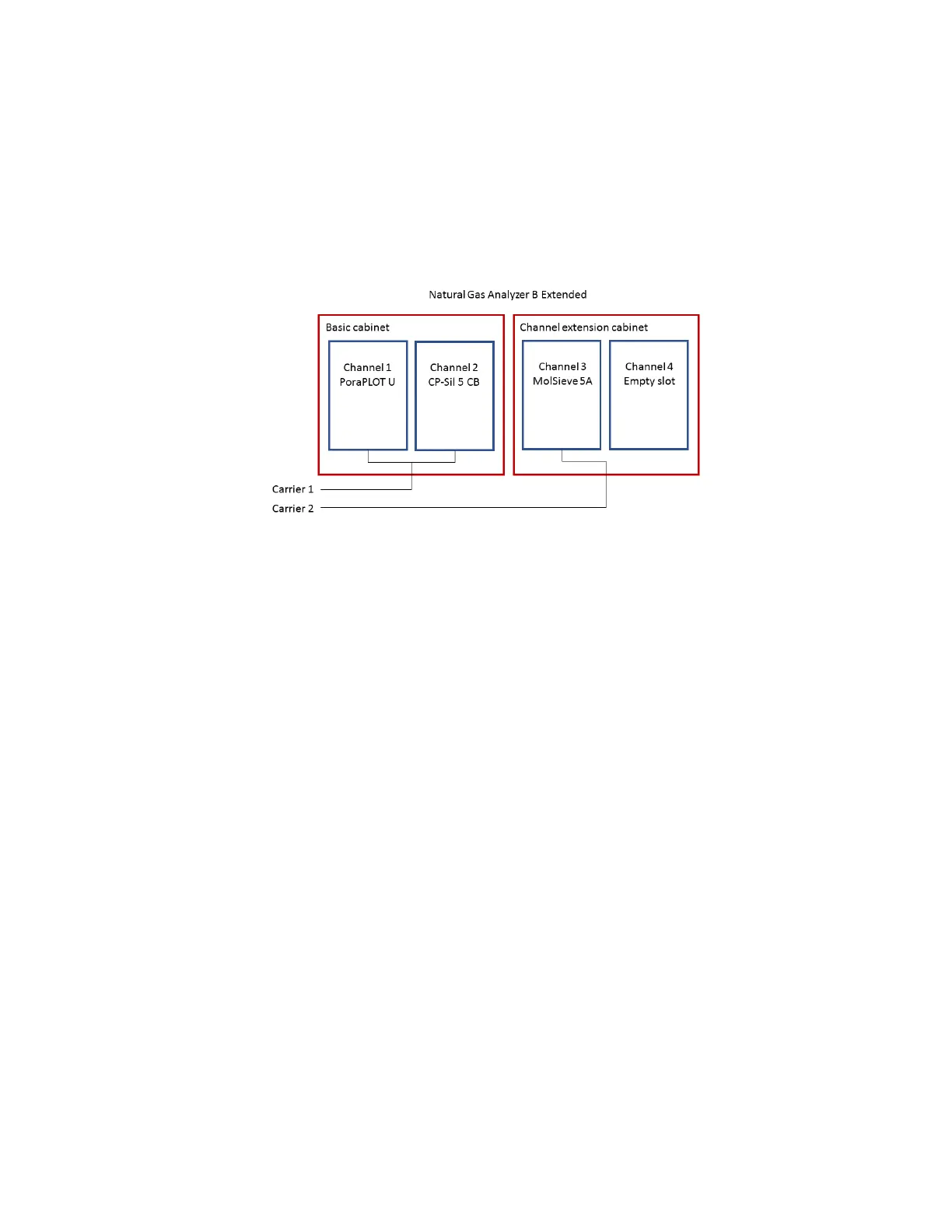

Instruments with the dual carrier option are typically configured as shown below.
