6
Channel Exchange and Installation
Channel instal
lation procedure
Agilent 990 Micro GC User Manual
91
Channel installation procedur
e
1

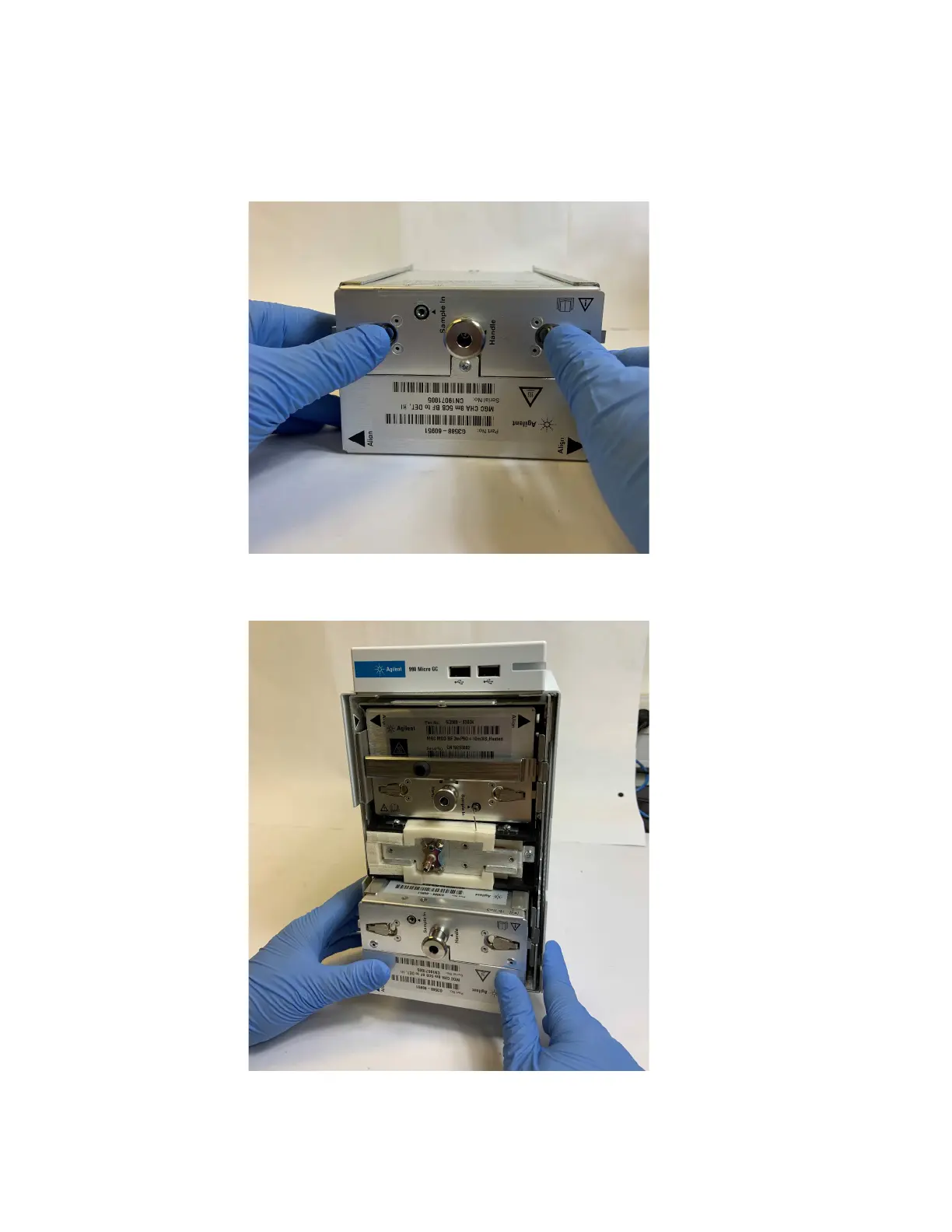

Push both tabs down.
2
Carefully slide the chan
nel into the cabinet, until it clicks int
o place.
90
92
