2 Instrument Overview

Connecting a Channel Extension Cabinet

24 Agilent 990 Micro GC User Manual

Connecting a Channel Extension Cabinet

Two cabinets can be connected for an instrument equipped with up to four GC channels. For

detailed information, see the “Agilent 990 Micro GC Channel Extension Cabinet Installation

Manual” (p/n G3588-90017).

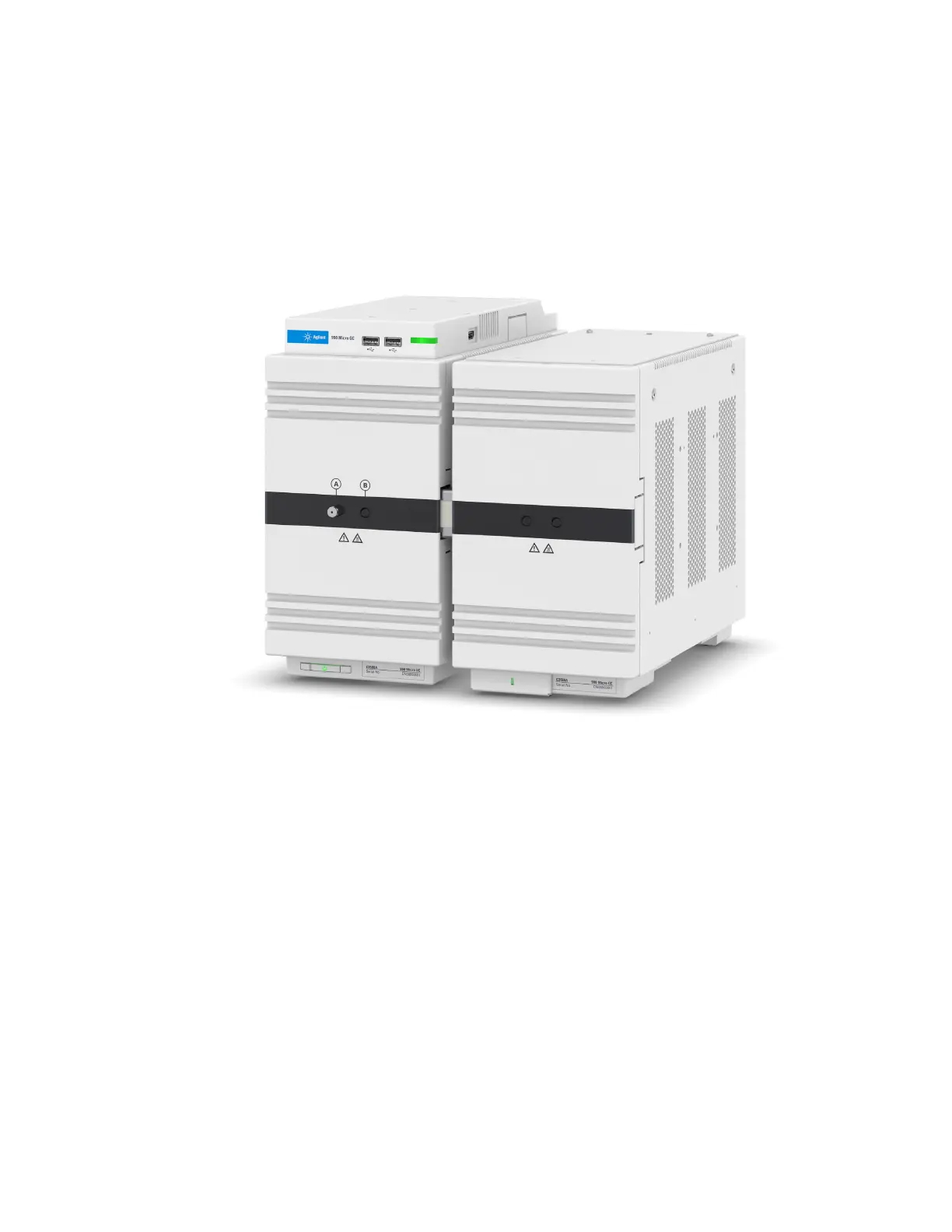

Figure 10. Front view of two GC channel cabinets connected

Table of Contents3
