4Sample Gas Handling
Installing and configuring a sample inlet manifold
Agilent 990 Micro GC User Manual 45

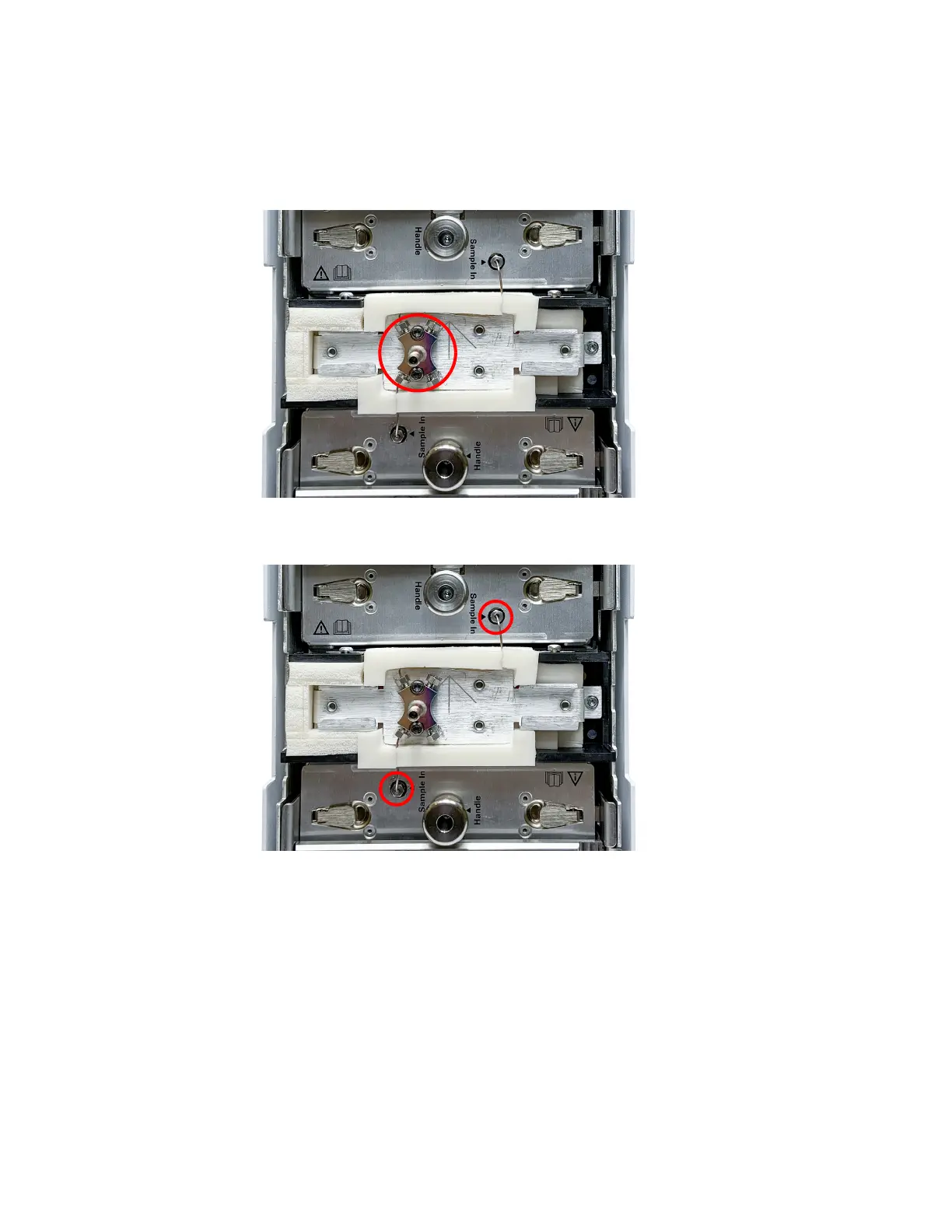

2 Connect sample inlet tubing to the Hexagonal Sample Inlet Manifold (p/n G3588-60662).
3 Using two Torx T-10 screws, attach the Hexagonal Sample Inlet Manifold to the front of the
Pump Assembly in the position shown below.
4 Connect sample inlet tubing to the GC Channel.
