4Sample Gas Handling

Injection procedure

Agilent 990 Micro GC User Manual 57

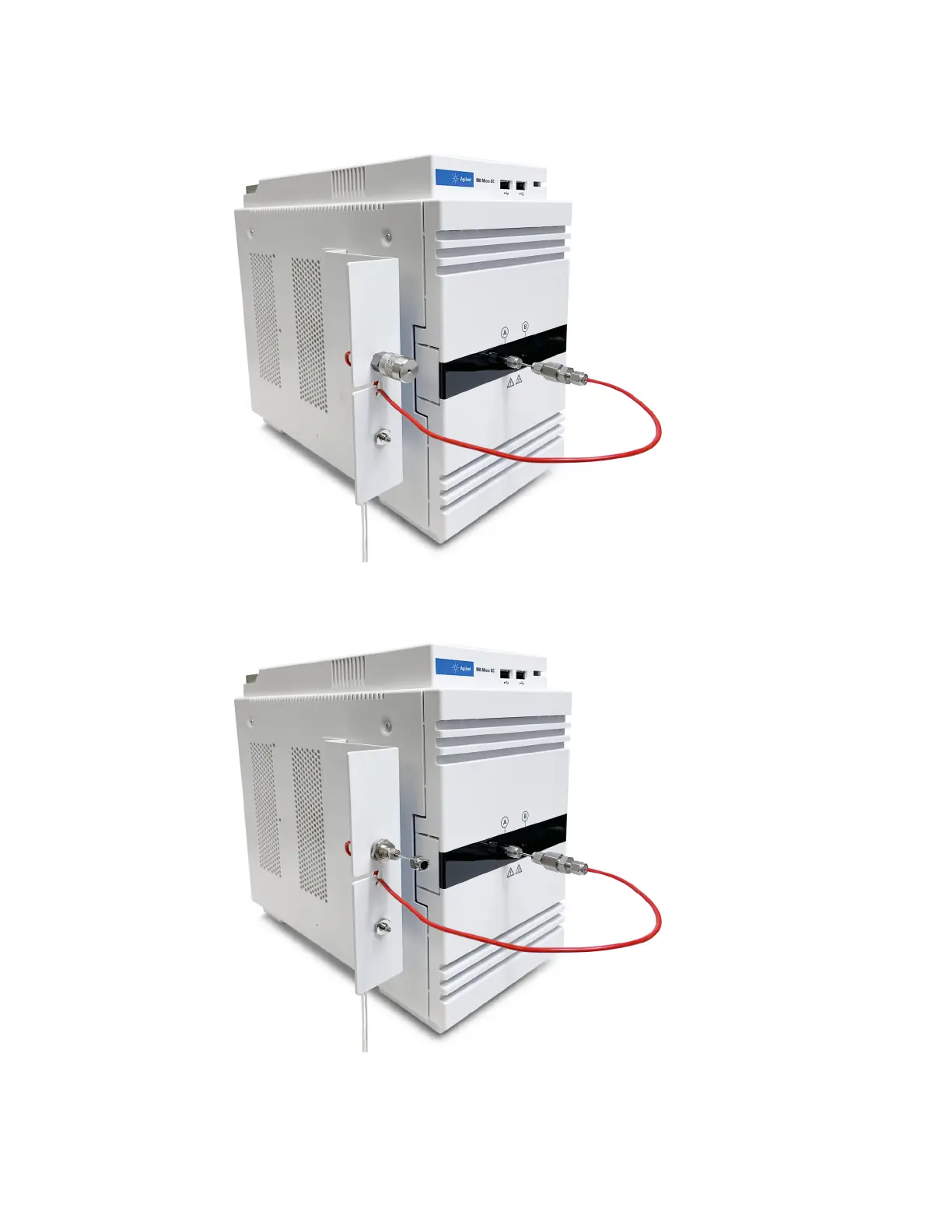

Figure 20. Septum nut injection port (p/n G3588-68865) installed

Figure 21. Luer lock injection port (p/n G3588-68866) installed
