7 Replacement Procedures

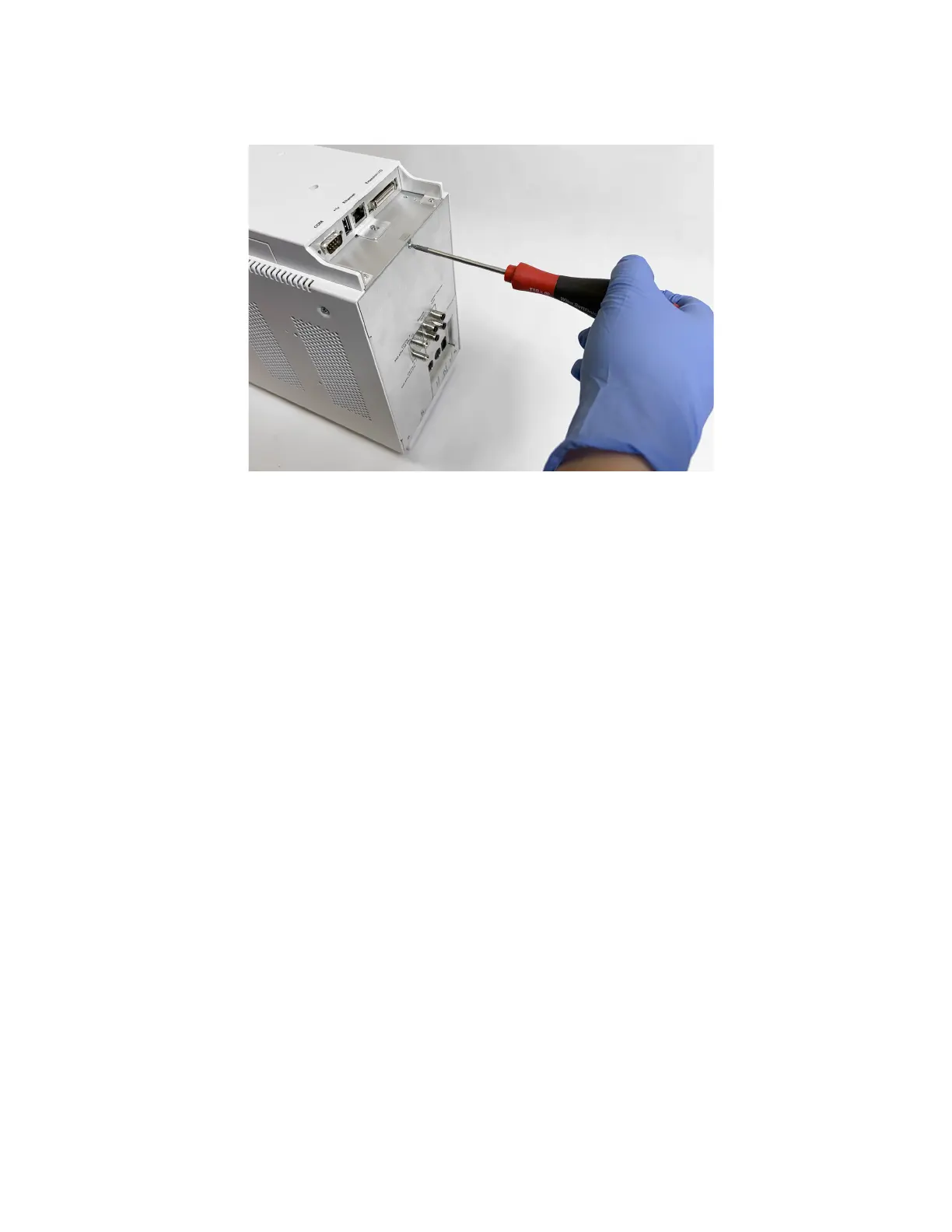

Removing the rear covers

96 Agilent 990 Micro GC User Manual

4 Carefully lift and remove main and secondary rear covers.

5 Installation is the reverse of removal.
