Agilent Technologies ESG-D Series Manual Supplement

ESG-D Series Option H98 Signal Generators Using Wideband CDMA
Front-Panel Operation
Manual Supplement 3-5
Setting Channels, Long Code, and Short Code
1. Turn on Channel 1.
Channel 1 defaults to
On after a normal instrument preset. Since this is the desired
condition for this example, no action is necessary (the
Channel State Off On softkey toggles
the operating state of Channel 1).
2. Turn off Perch2.
The Perch1 and Perch2 channels also default to
On after a normal instrument preset. In
this example, only the Perch1 channel is required to be on. To turn off Perch2, first
press
Perch Setup, then press the Perch2 Off On softkey until Off is highlighted.
3. Set the downlink long code to 50.
The downlink long code is applied to both the Perch1 channel and the traffic channel.
First press the Return hardkey to display the Wideband CDMA menu, then press the
Down Long Code softkey.
Use the numeric keypad to enter
50, then press the Enter softkey to terminate the entry.
4. Set the short code to 15.
After a normal instrument preset, the Channel 1 short code default value is 8. To
change it, first press the

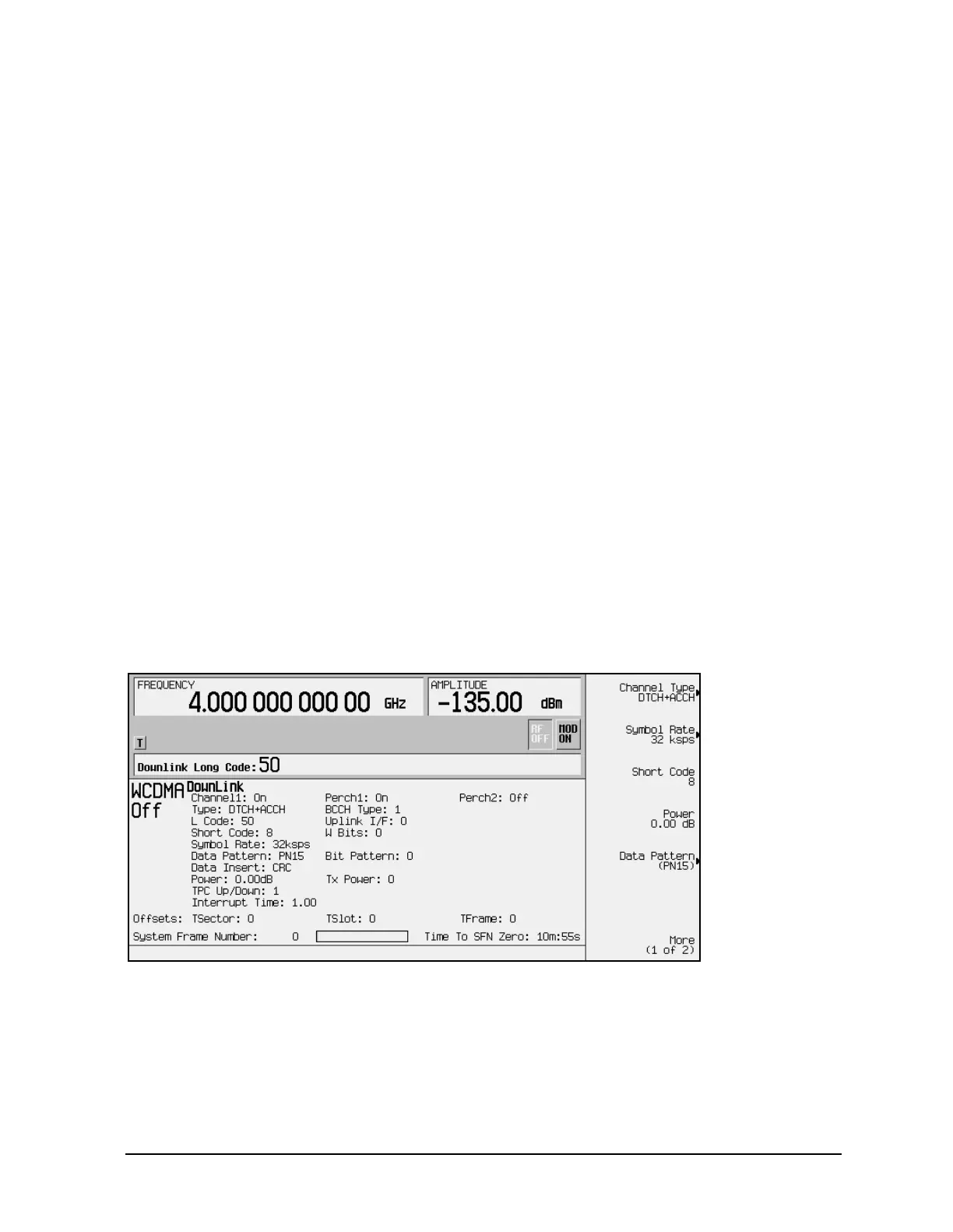

Channel Setup softkey to open the Channel Setup menu (shown
in the following illustration), then press
Short Code, set the short code to 15, and press
Enter to terminate the entry.
5. Set the channel type to DTCH.
After a normal instrument preset, the default channel type is
DTCH+ACCH. To change it,
first press the
Channel Type softkey, then press DTCH.
