Agilent Technologies ESG-D Series Manual Supplement

ESG-D Series Option H98 Signal Generators Using Wideband CDMA
Rear-Panel Overview
Manual Supplement 3-15
17. EVENT 2 Connector (Transmission Power Control Out)
This signal is high during timeslots that the Transmission Power Control (TPC) is in the
up condition, and low during timeslots that the TPC is in the down condition. The TPC
range can vary between 1 and 80 timeslots. The Transmission Power Control Out updates
at the beginning of the timeslot.
NOTE The signal edges are referenced to the output of the data generator, not
to the outputs of the baseband generator or the RF section. The delay
from the data generator output to the RF section output is
approximately 24 chips.

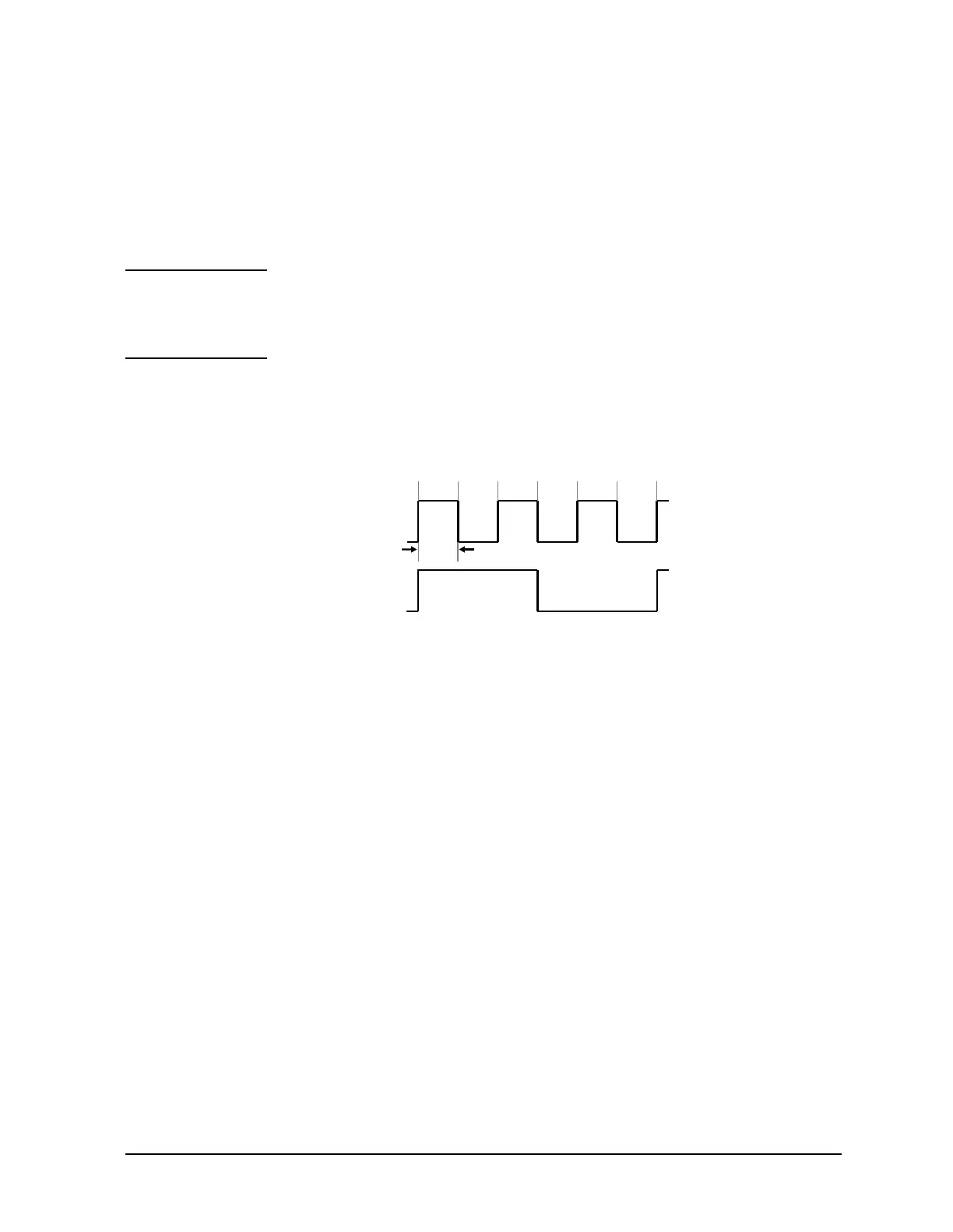

Figure 3-8 Example TPC Output Waveform
TS n
TS n+1 TS n+2
TS n+3
TS n+4
TS n+5
Timeslots
625 µs
TPC = 1 UP/DOWN
TPC = 3 UP/DOWN
