Agilent Technologies ESG-D Series Manual Supplement

ESG-D Series Option H98 Signal Generators Using Wideband CDMA
Understanding Time Offsets
Manual Supplement 3-9
TFrame
Adjustment range: 0 to 15 slots
Default: 0 slots
Downlink Mode
Refer toFigure 3-1. In downlink mode, TFrame adjusts the number of timeslots that the
channel 1 radio frame is offset from both the Perch radio frame and the long code phase
zero. The total offset is equal to TFrame plus TSlot.
TFrame in Uplink Mode
Refer toFigure 3-2 on page3-10. In uplink mode, TFrame adjusts the number of timeslots
channels 1, 2, and 3 radio frames are offset from long code phase 1280. Total offset is equal
to TFrame plus TSlot.

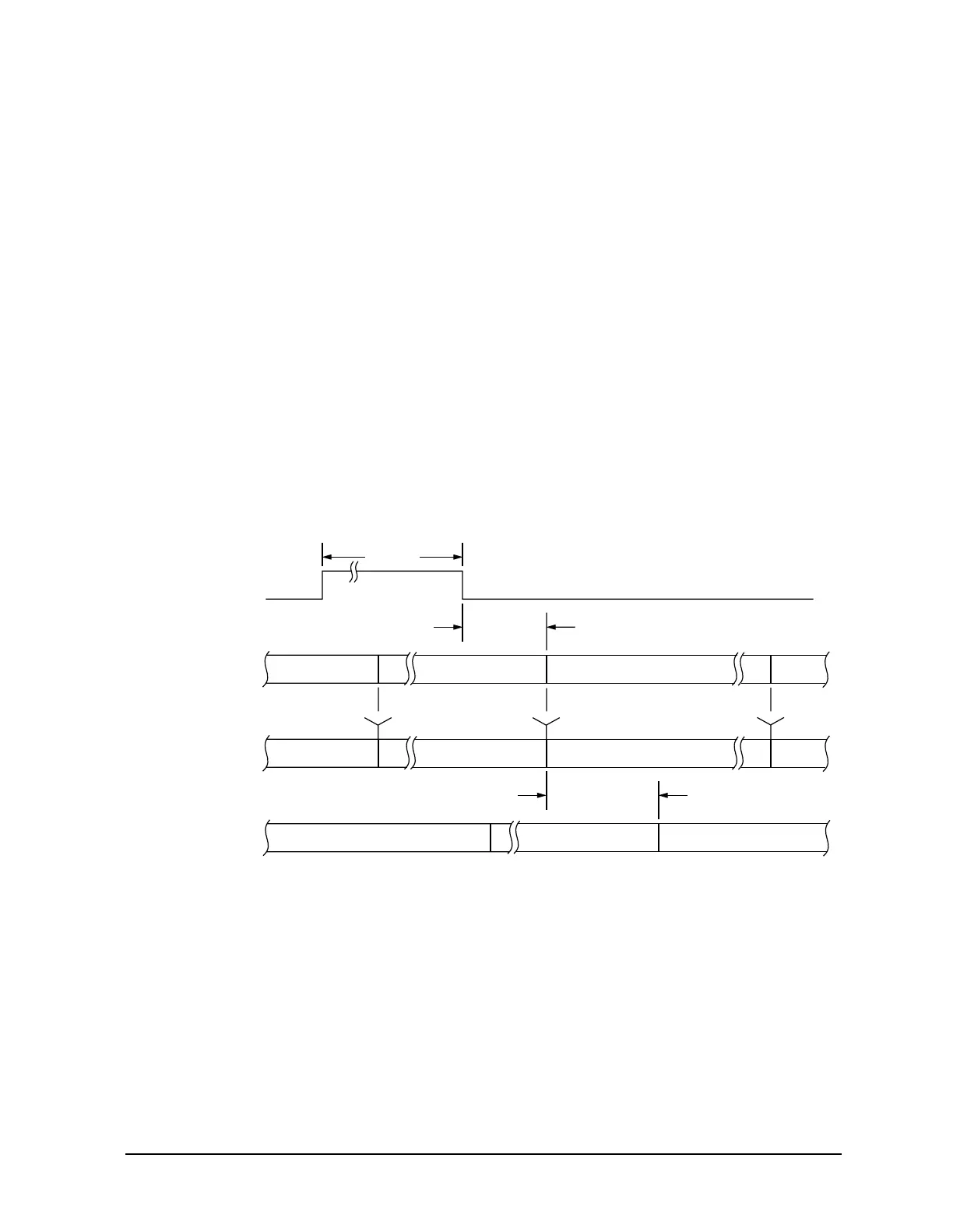

Figure 3-1 Time Offsets in Downlink Mode
BTS Reference
SFN Reset Output
(DATA OUT Rear-Panel BNC)
TSector Timing
Adjustment
Perch Frame Timing
at RF
Downlink Long Code
Phase at RF
TSlot, TFrame
Channel 1 Frame
Timing Adjustment
at RF
10 ms
SFN = 12
16
-1
TSector
0 – 2560 chips
SFN = 12
16
-1
SFN = 0
FN = 0
TSlot +
TFrame
40959 0 40959 0
40959 0
FN = 12
16
-1
TSlot Range: 32 ksps 0 to19 symbols
64 ksps 0 to39 symbols
128 ksps 0 to79 symbols
256 ksps 0 to 159 symbols
TFrame Range:0 to 15 slots
TSector Range:0 to 2560 chips
