ESG-D Series Option H98 Signal Generators Using Wideband CDMA
Rear-Panel Overview
Manual Supplement 3-11
Rear-Panel Overview
This section contains descriptions of the rear-panel connectors. This information
supplements the information in the standard manual set.

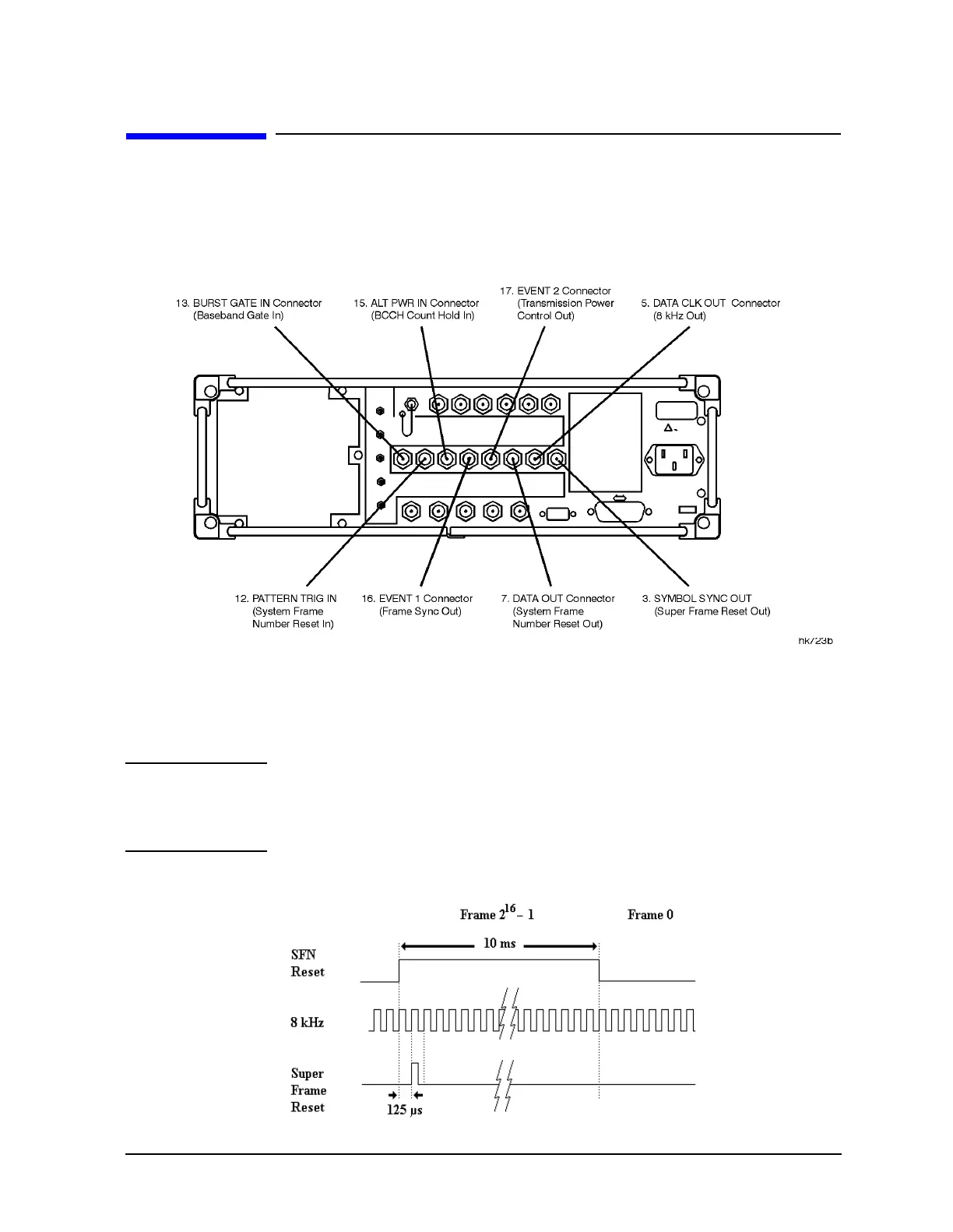

Figure 3-3 Rear-Panel Connector Changes
3. SYMBOL SYNC OUT Connector (Super Frame Reset Out)
This is a 125 µs high signal, output every 64 frames. The high is delayed 125 µs (or one
8 kHz cycle) from the start of the frame.
NOTE The signal edges are referenced to the output of the data generator, not
to the outputs of the baseband generator or the RF section. The delay
from the data generator output to the RF section output is
approximately 24 chips.
Figure 3-4 Super Frame Reset, 8 kHz, and SFN Reset Output Waveforms
