Repairing the Autosampler
Assembling the Main Cover
Assembling the Main Cover
NOTE The plastics kit contains all parts, but it is not assembled.
CAUTION Observe the assembly instructions carefully. The main cover cannot be
disassembled once assembled incorrectly.
1 Insert the “Agilent Technologies 1100 Series” nameplate into the recess in the
top cover
2 Place the top cover on the bench.
3 Press the side panels into the slots in the top cover

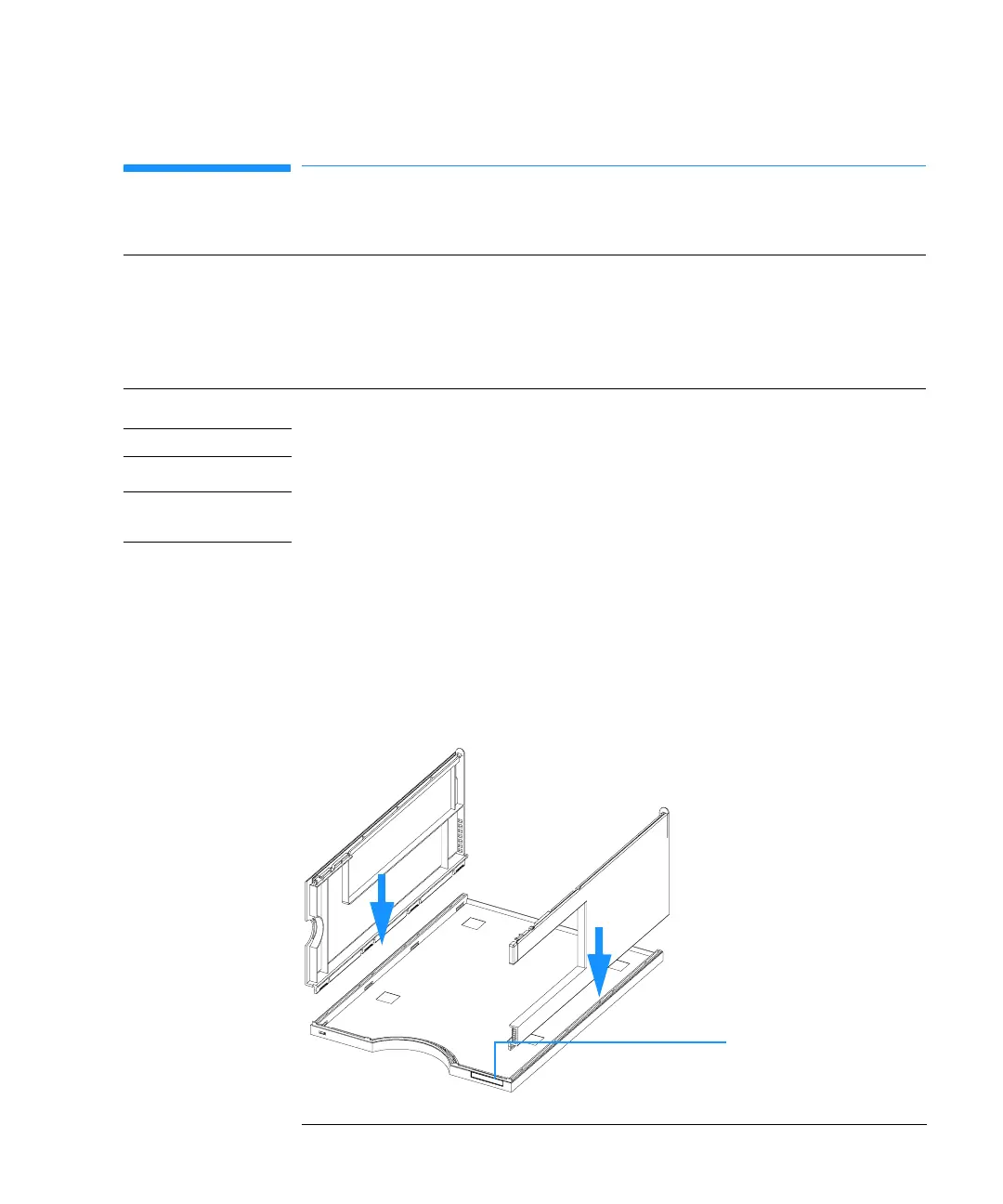

Figure 17 Assembling the Main Cover
Tools required None
Parts required G1313-68703 Cover kit for G1313A
G1329-68703 Cover kit for G1329A - G1389A - G2260A
G1329-68706 Cabinet upgrade kit for G1313A - G1329A
5042-1381 Name plate
Nameplate
