Agilent Technologies G1313A User Manual

189
Parts and Materials
Remote Cables
Remote Cables

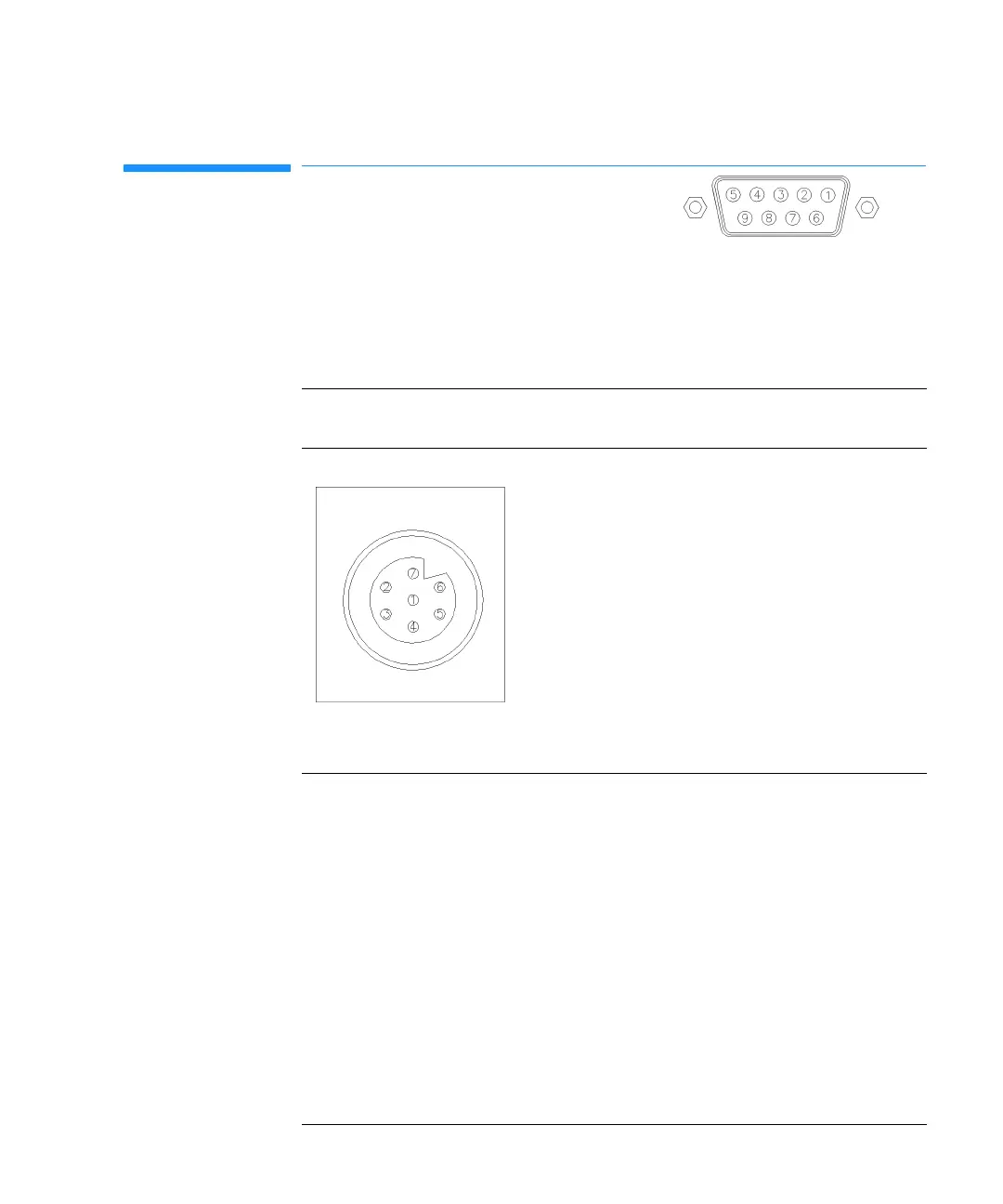

One end of these cables provides a Agilent Technologies APG (Analytical
Products Group) remote connector to be connected to Agilent 1100 Series
modules. The other end depends on the instrument to be connected to.
Agilent 1100 to 3390 Integrators
Connector
01046-60203
Pin
3390
Pin
Agilent 1100 Signal Name
Active
(TTL)
2 1 - White Digital
ground
NC 2 - Brown Prepare run Low
7 3 - Gray Start Low
NC 4 - Blue Shut down Low
NC 5 - Pink Not
connected
NC 6 - Yellow Power on High
NC 7 - Red Ready High
NC 8 - Green Stop Low
NC 9 - Black Start request Low
