Installing the Autosampler
Optimizing the Stack Configuration
Optimizing the Stack Configuration
If your autosampler is part of a system, you can ensure optimum
performance by installing the autosampler in the stack in the position
shown in Figure 1 and Figure 2. Figure 3 and Figure 4 show the
configuration recommended for a thermostatted autosampler. These
configurations optimize the system flow path, ensuring minimum delay
volume.

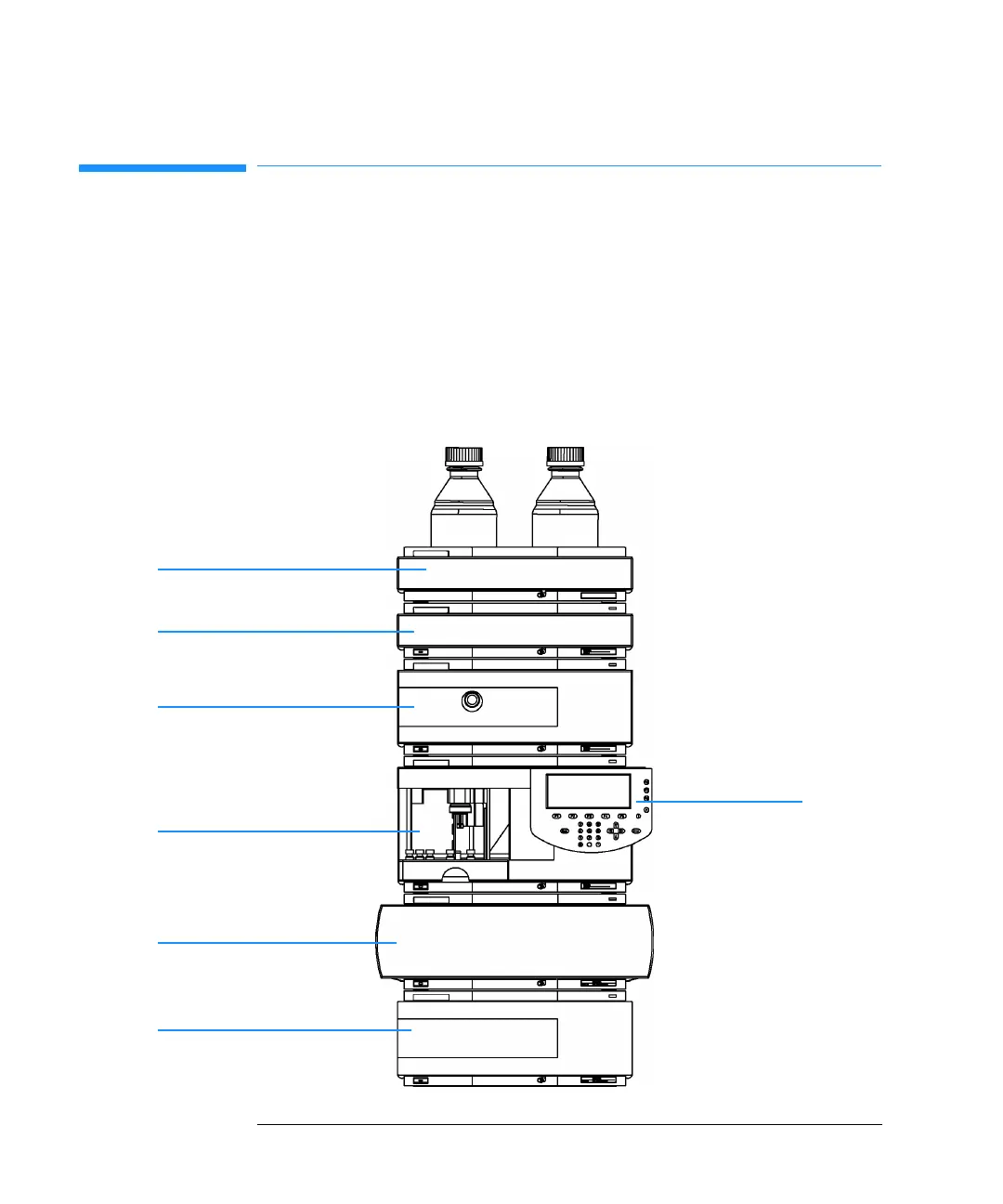

Figure 1 Recommended Stack Configuration for an Autosampler (Front View)
Solvent cabinet
Vacuum degasser
Pump
Column compartment
Autosampler or
Micro Autosampler or
Preparative Autosampler
Detector
Control module
