Repairing the Autosampler
Interface Board
Interface Board
CAUTION The interface board is sensitive to electrostatic discharge. Always use the ESD
strap when handling electronic boards.
1 Switch off the autosampler at the main power switch.
2 Disconnect cables from the interface board connectors.
3 Loosen the screws. Slide out the interface board from the autosampler.
4 Install the interface board. Secure the screws.
5 Reconnect the cables to the board connectors

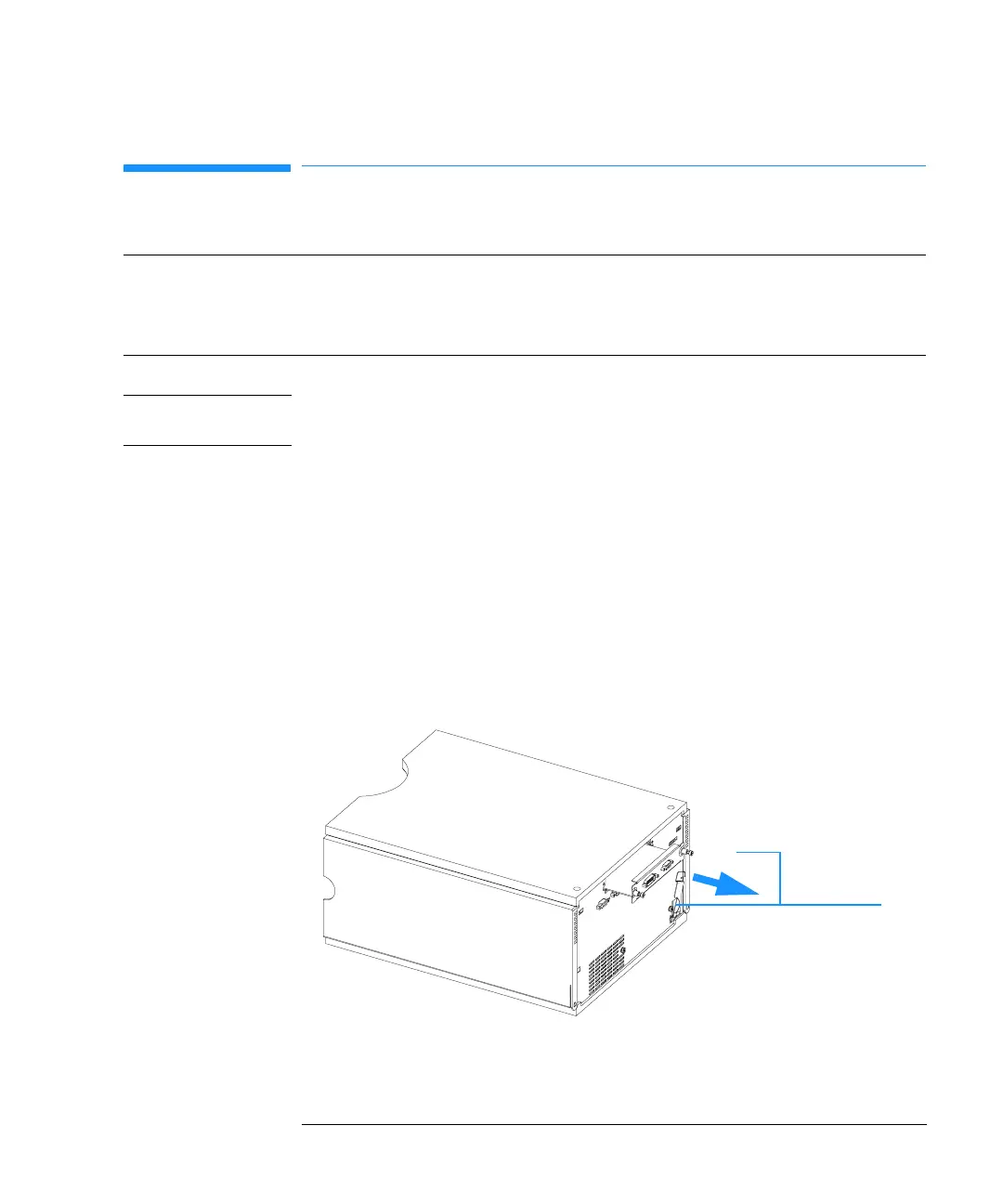

Figure 16 Exchanging the Interface Board
Frequency At installation or when defective.
Tools required Flat-head screwdriver.
Parts required Interface board, see “Optional Interface Boards” on page 228.
Screws
