Repairing the Autosampler
Leak Sensor
Leak Sensor
Frequency When defective
Tools required None.
Parts required Leak sensor 5061-3356.
Before beginning this procedure:
❏ Remove the top cover (page 128).
❏ Remove the transport assembly (page 132).
❏ Remove the sampling unit (page 134).

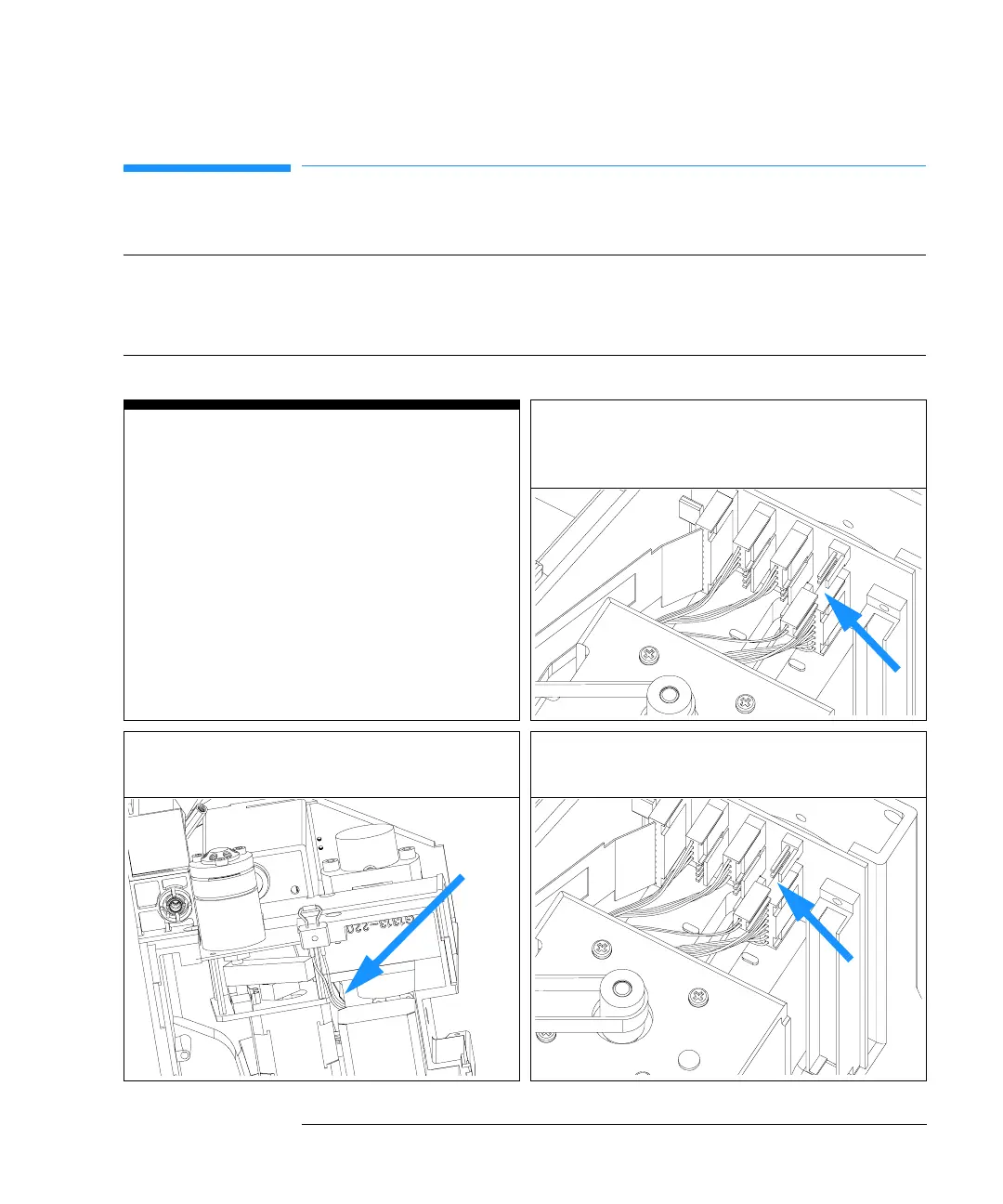

1 Disconnect the leak sensor from the SUD
board (labelled “leak sensor”). Remove the
sensor.
2 Feed the cable of the new sensor through the
base of the sampling unit to the SUD board.
3 Connect the connector to the connector
(labelled “leak sensor”).
