Parts and Materials

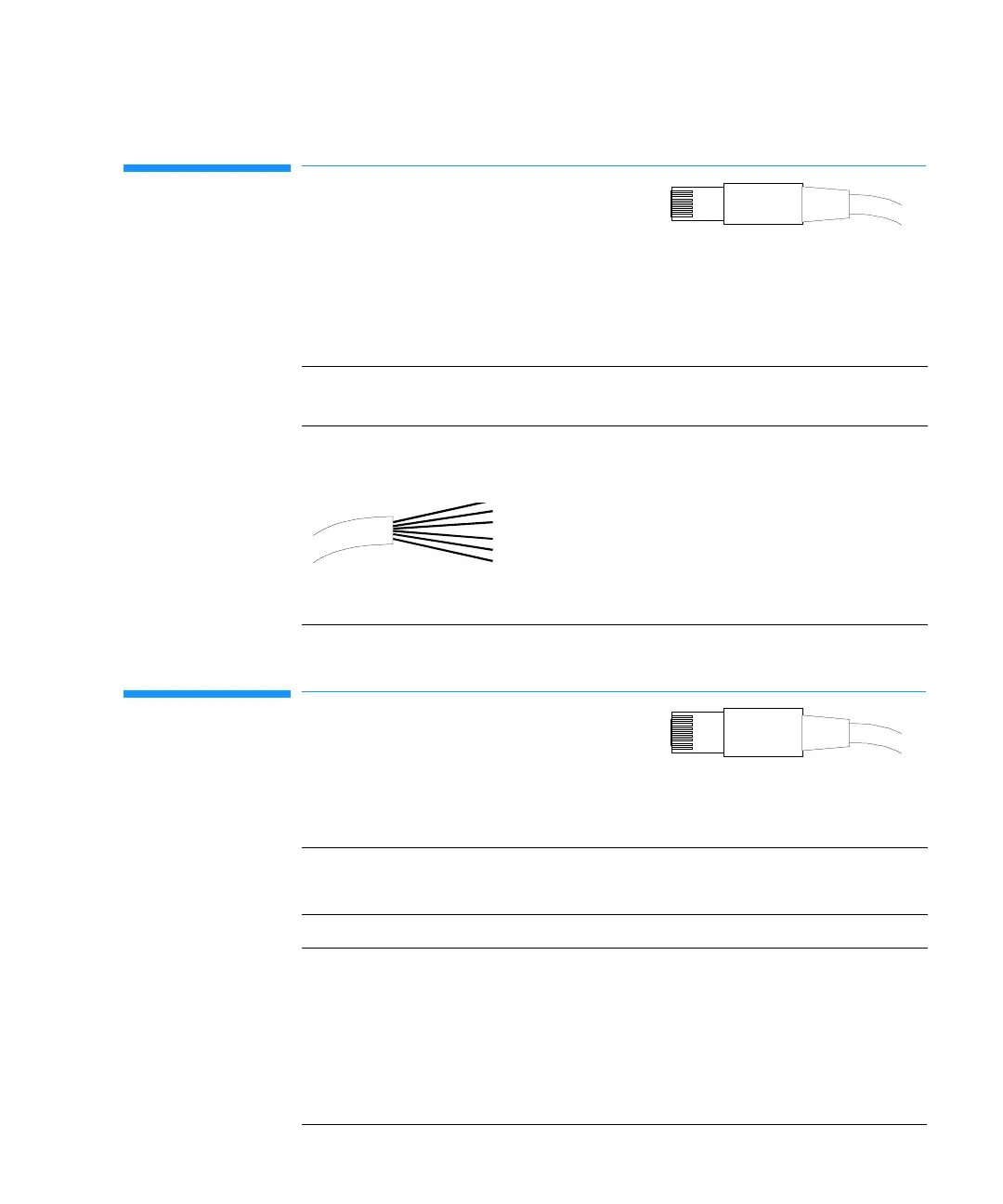

Auxiliary Cable
Auxiliary Cable
One end of this cable provides a modular plug to be connected to the
Agilent 1100 Series vacuum degasser. The other end is for general purpose.
Agilent 1100 Series Degasser to general purposes
CAN Cable
Both ends of this cable provide a modular plug to be connected to
Agilent 1100 Series module’s CAN-bus connectors.
Connector
G1322-81600 Color
Pin
Agilent 1100 Signal Name
White 1 Ground
Brown 2 Pressure signal
Green 3
Yellow 4
Grey 5 DC + 5 V IN
Pink 6 Vent
Agilent 1100 module to module, 0.5m lg 5181-1516
Agilent 1100 module to module, 1m lg 5181-1519
Agilent 1100 module to control module G1323-81600
