Parts and Materials
BCD Cables
Agilent 1100 to 3396 Integrators
Agilent 1100 to General Purpose

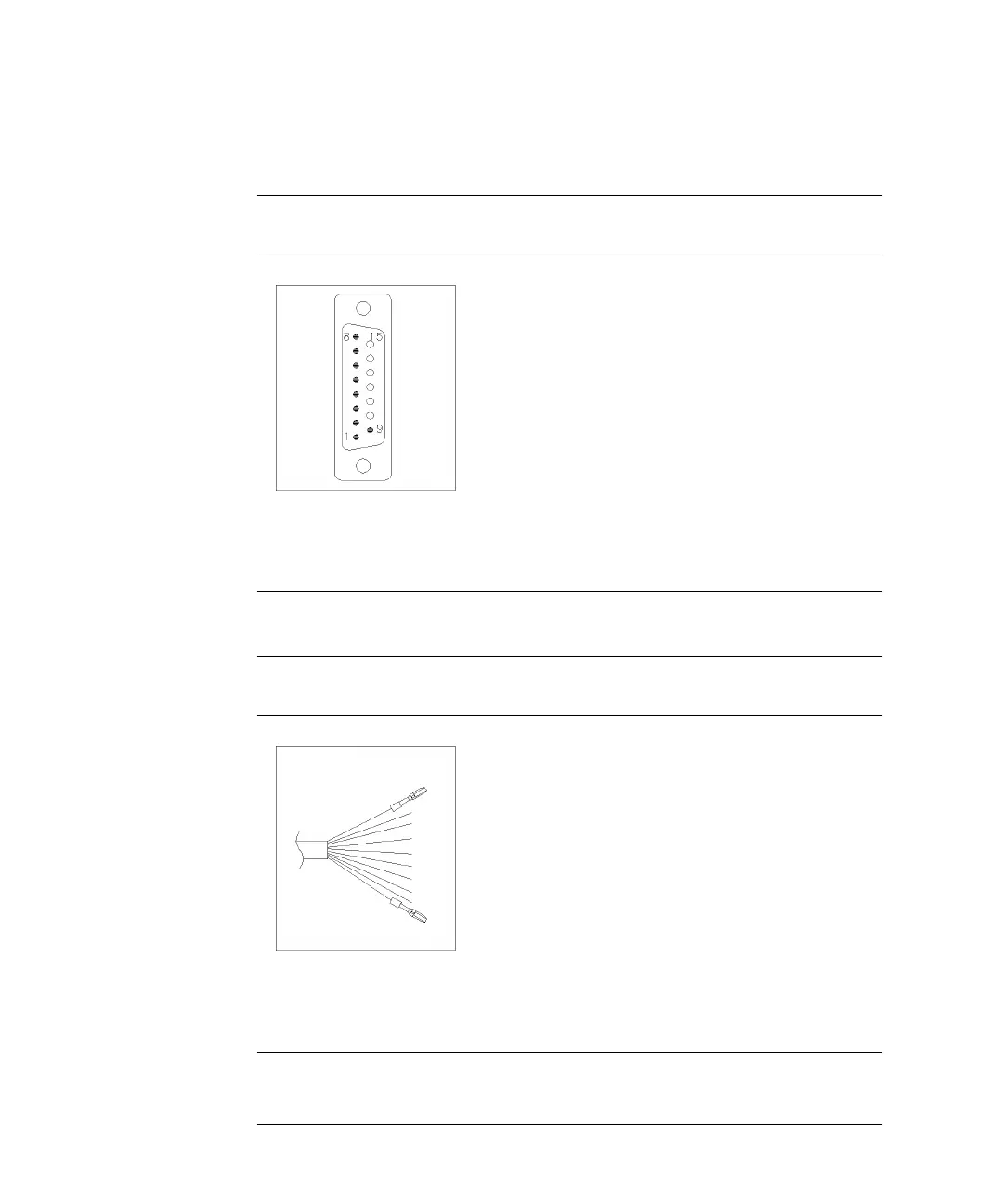

Connector
03396-60560
Pin
3392/3
Pin
Agilent 1100 Signal Name BCD Digit
1 1 BCD 5 20
2 2 BCD 7 80
3 3 BCD 6 40
4 4 BCD 4 10
5 5 BCD 0\ 1
66BCD 38
7 7 BCD 2 4
88BCD 12
99Digital
ground
NC 15 + 5 V Low
Connector
18594-60520 Wire Color
Pin
Agilent 1100 Signal Name BCD Digit
Green 1 BCD 5 20
Violet 2 BCD 7 80
Blue 3 BCD 6 40
Yellow 4 BCD 4 10
Black 5 BCD 0\ 1
Orange 6 BCD 3 8
Red 7 BCD 2 4
Brown 8 BCD 1 2
Gray 9 Digital
ground
White 15 +5 Vt Low
