Repairing the Autosampler
Metering-Drive Motor and Belt
Metering-Drive Motor and Belt
Frequency When belt or motor defective
Tools required Pozidrive No. 1 screwdriver
Parts required Metering-drive motor 5062-8590
Belt 1500-0697
Before beginning this procedure:
❏ Remove the top cover (page 128).
❏ Remove the transport assembly (page 132).
❏ Remove the sampling unit (page 134).

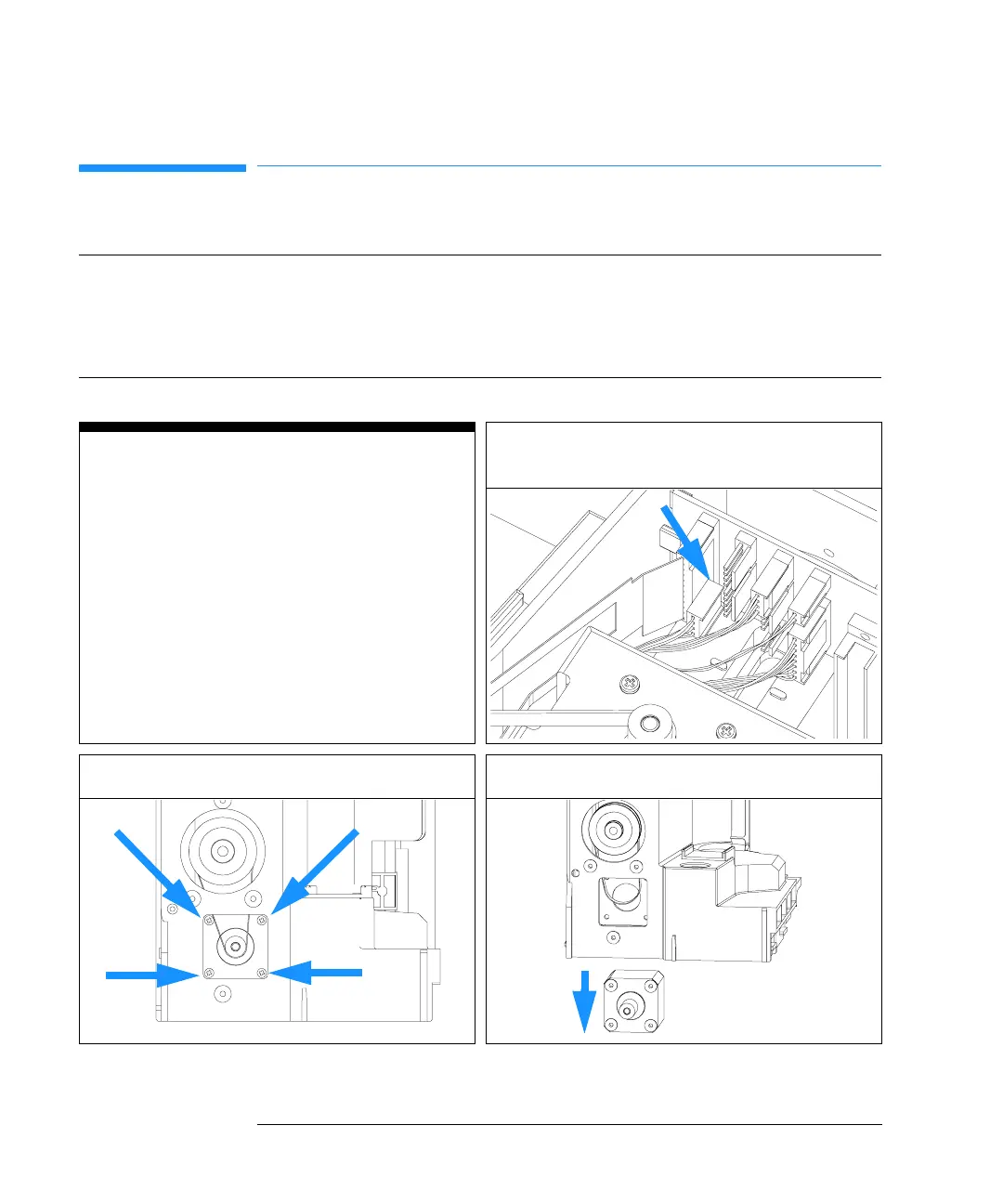

7 Disconnect the motor connector from the
SUD board (labelled “Metering M”).
8 Remove the four fixing screws. 9 Remove the motor.
