Repairing the Autosampler
Injection-Valve Assembly

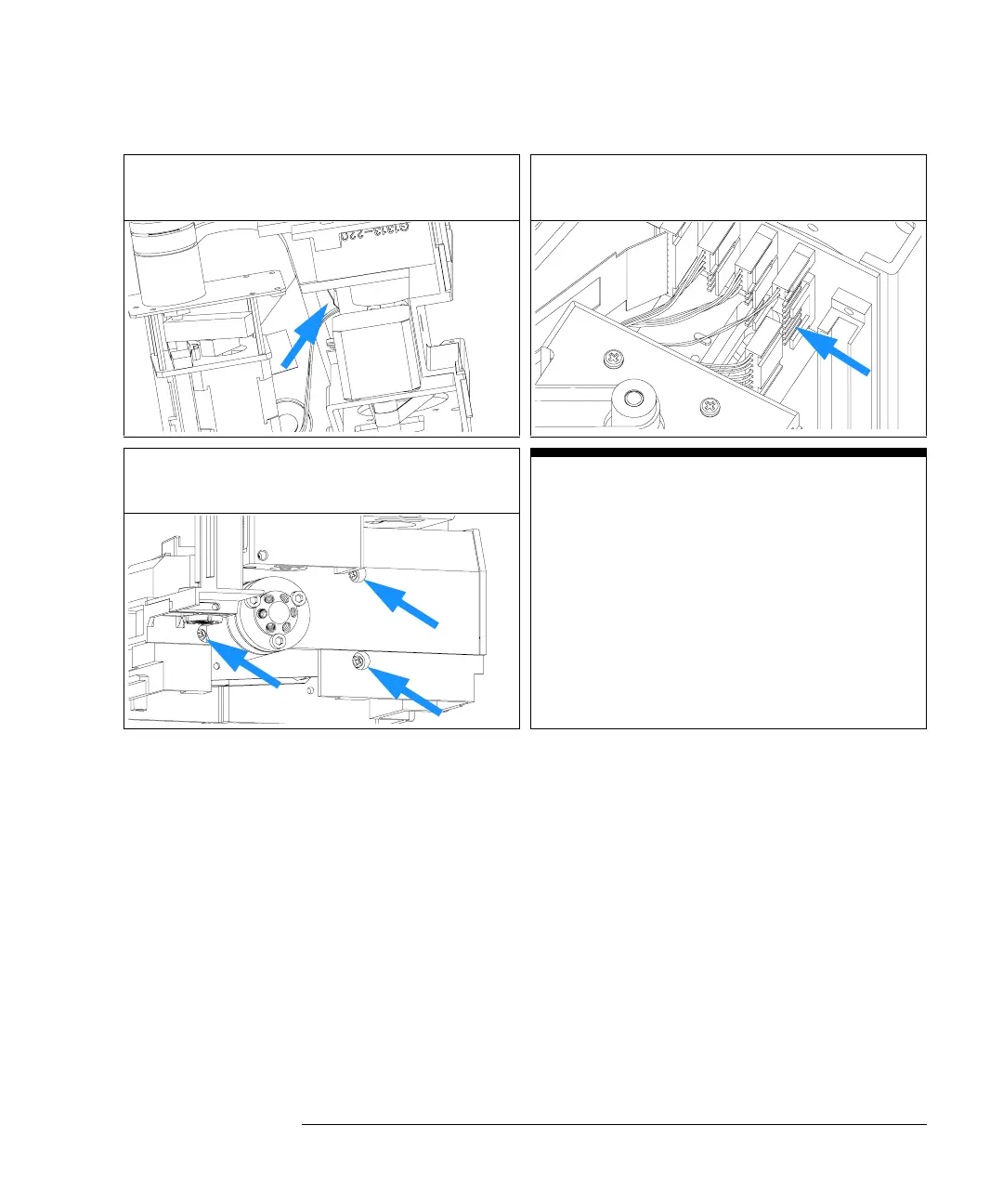

4 Feed the cable of the new valve through to the
SUD board).
5 Connect the valve cable to the connector
(labelled “Valve Assy”).
6 Fix the valve assembly in place securely with
the three screws.
On completion of this procedure:
❏ Install the sampling unit (page 134).
❏ Install the transport assembly (page 132).
❏ Install the top cover (page 128).
❏ Replace the injection-valve capillaries (page
31).
❏ Verify the transport assembly alignment
(page 99).
