Agilent Technologies G1313A User Manual

187
Parts and Materials

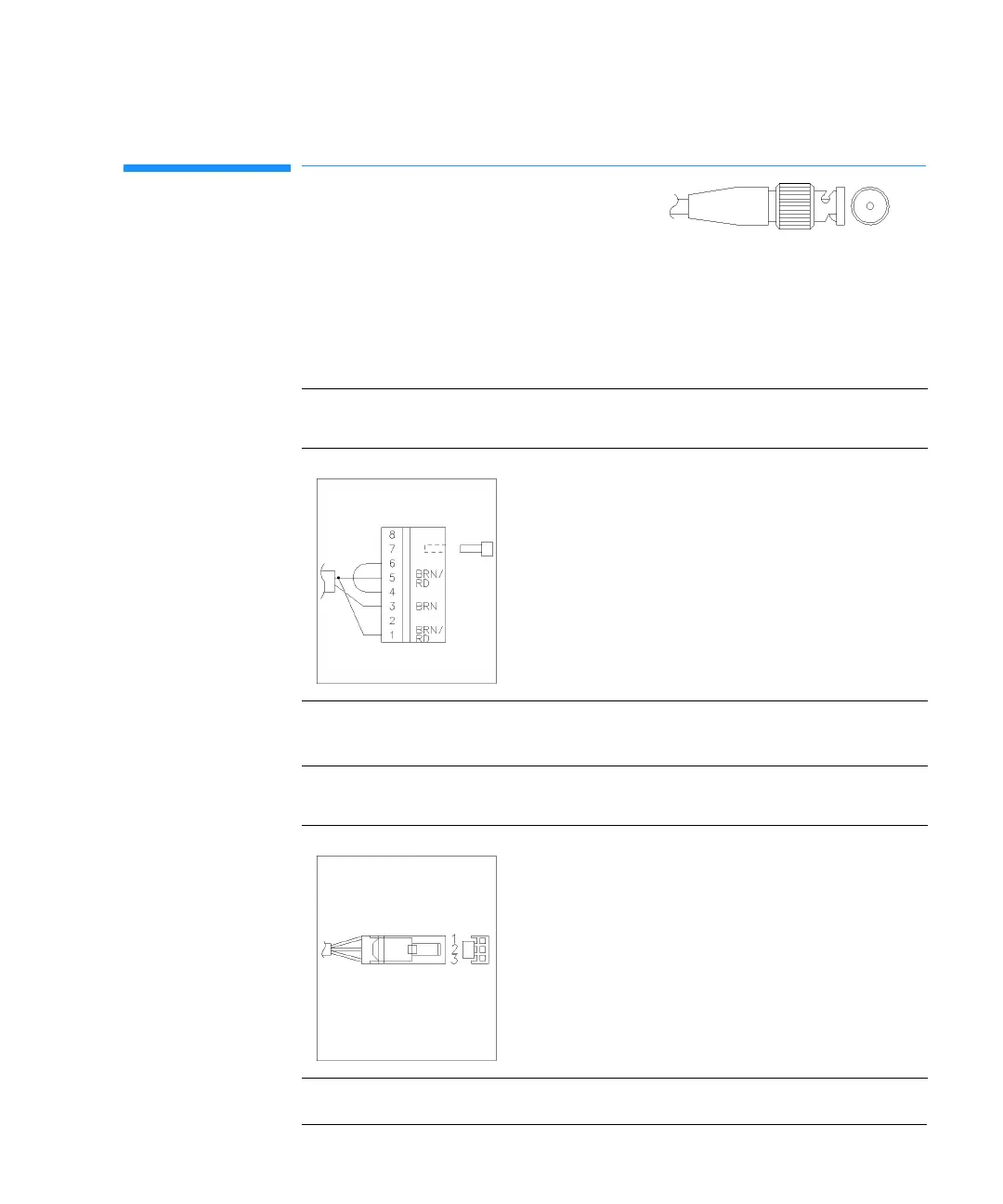

Analog Cables
Analog Cables
One end of these cables provides a BNC connector to be connected to
Agilent 1100 Series modules. The other end depends on the instrument to
which connection is being made.
Agilent 1100 to 3390/2/3 Integrators
Agilent 1100 to 3394/6 Integrators
Connector
01040-60101
Pin
3390/2/3
Pin
Agilent 1100 Signal Name
1ShieldGround
2 Not connected
3CenterSignal +
4 Connected to pin 6
5ShieldAnalog -
6 Connected to pin 4
7Key
8 Not connected
Connector
35900-60750
Pin
3394/6
Pin
Agilent 1100 Signal Name
1 Not connected
2ShieldAnalog -
3CenterAnalog +
