BCD Cables
BCD Cables

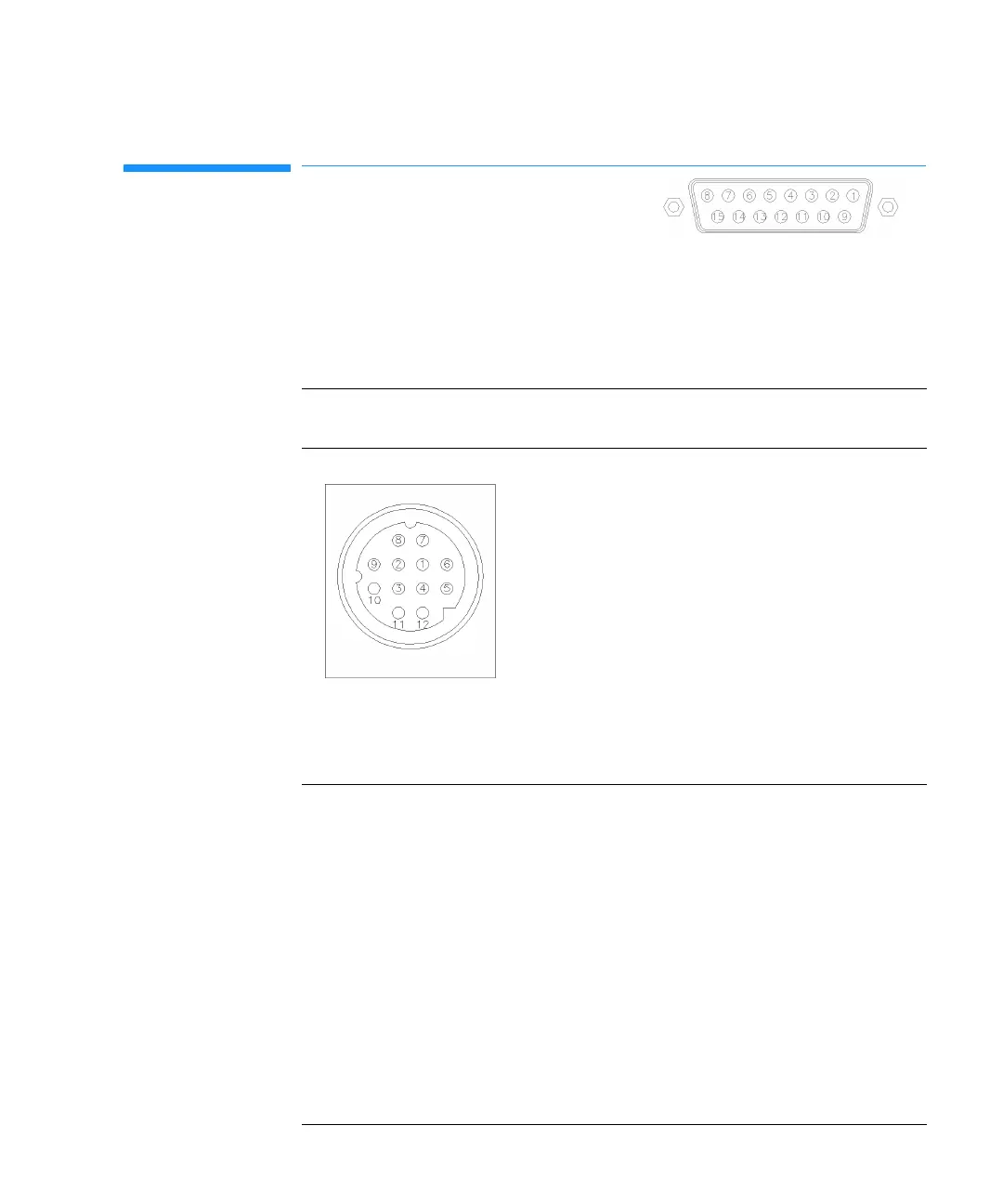

One end of these cables provides a 15-pin BCD connector to be connected
to the Agilent 1100 Series modules. The other end depends on the
instrument to be connected to.
Agilent 1100 to 3392/3 Integrators
Connector
18584-60510
Pin
3392/3
Pin
Agilent 1100 Signal Name BCD Digit
10 1 BCD 5 20
11 2 BCD 7 80
3 3 BCD 6 40
9 4 BCD 4 10
7 5 BCD 0\ 1
56BCD 38
12 7 BCD 2 4
48BCD 12
19Digital
ground
215+5VLow
6 - Key
