Repairing the Autosampler
Top Cover and Foam
Top Cover and Foam
CAUTION This procedure requires removal of the MIO-interface board. The board is
sensitive to electrostatic discharge. Always use the ESD strap when handling
electronic boards.
Frequency When accessing internal parts.
Tools required If interface board installed: Flat-head screwdriver.
Parts required Foam kit G1313-68702

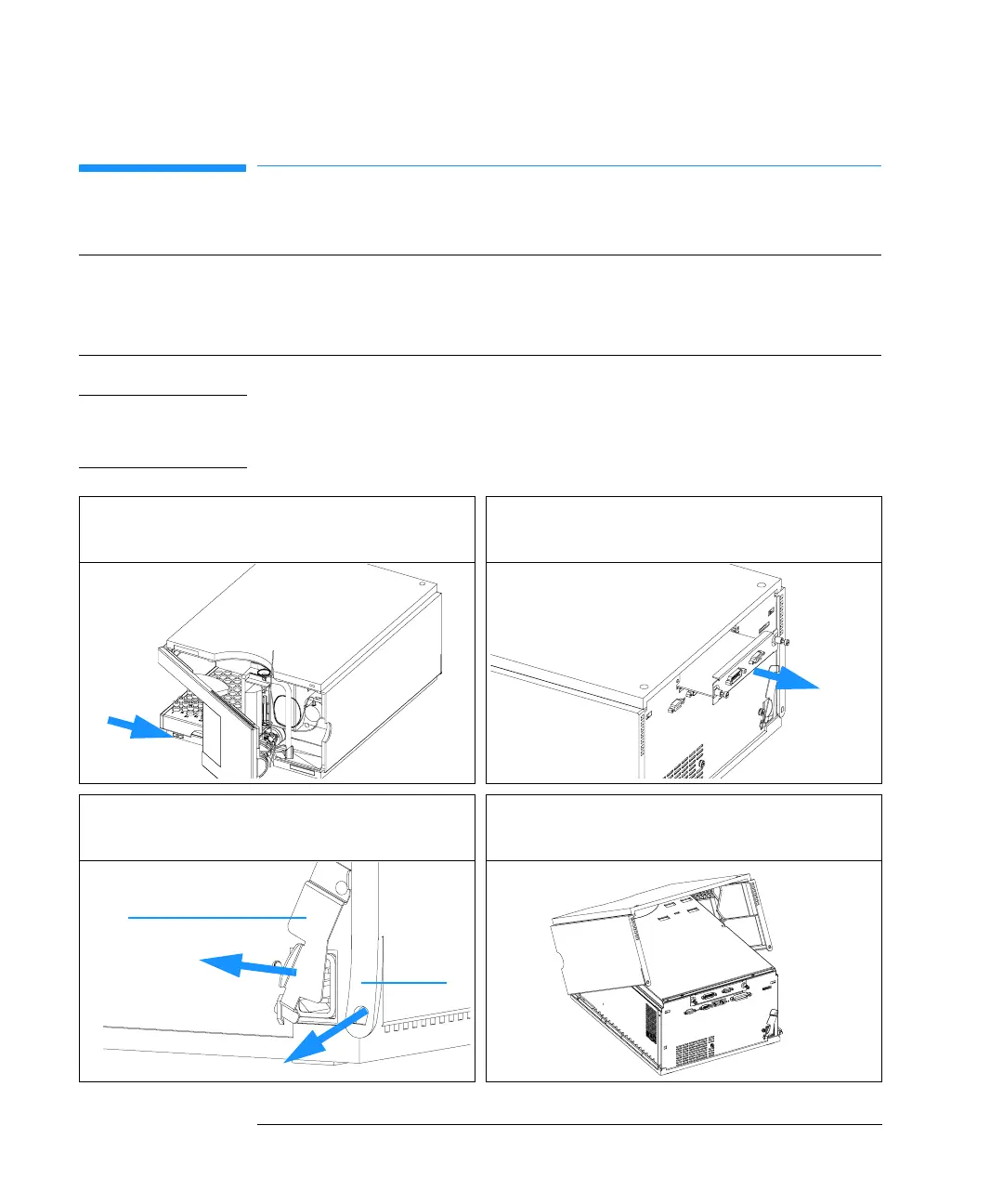

1 Switch off the autosampler at the main power
switch. Remove the power cable.
2 If installed, remove the ECB board.
3 Move the safety lever to the left.Lift the clips
on the top cover.
4 Lift the cover away.
CellFrame
safety lever
clip
CellFrame
