Agilent Technologies G1313A - Power and Status Light Pipes

173
Parts and Materials
Power and Status Light Pipes
Power and Status Light Pipes

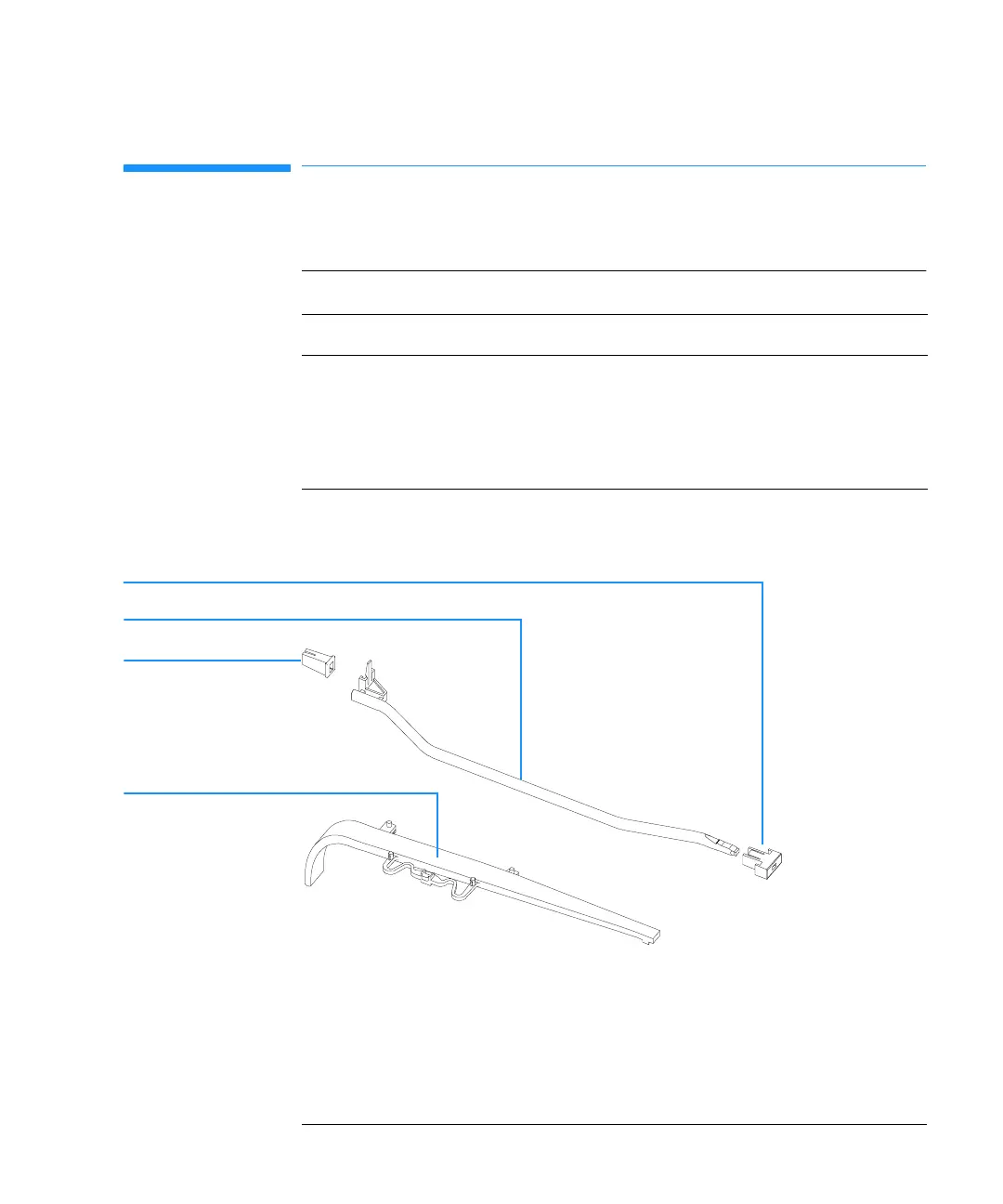

Figure 26 Power and Status Light Pipes
Table 29 Power and Status Light Pipes
,WHP 'HVFULSWLRQ 3DUW1XPEHU
1 Power switch button 5041-8381
2 Light pipe — power switch 5041-8382
3 Power switch coupler 5041-8383
4 Light pipe — status lamp 5041-8384
1
2
3
4
