Agilent Technologies G1313A - Diagnostics and Tests

264
Introduction to the Control Module
Diagnostics and Tests
Diagnostics and Tests

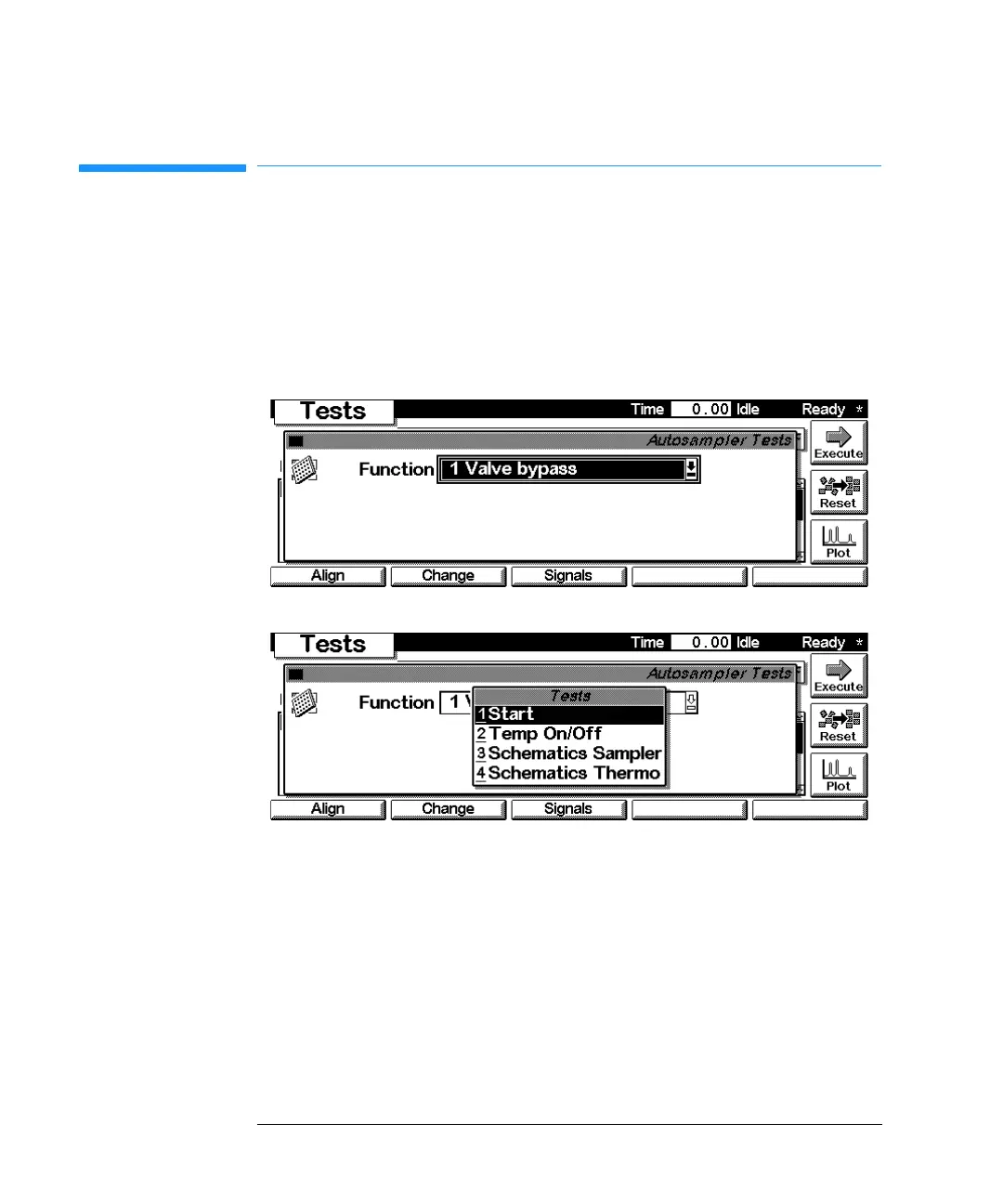

Tests screen Use the Esc key to receive Views on the F5 key. Choose System from the
pull-down menu. Use the F3 key (Tests) to select the ALS. Several tests are
available to test the Agilent 1100 autosampler. Additional test are listed in the
function box. Press the m-key to open the context sensitive menu. Menu item
3 (Schematics) will popup the ALS and ALS thermostat diagram.
