Parts and Materials

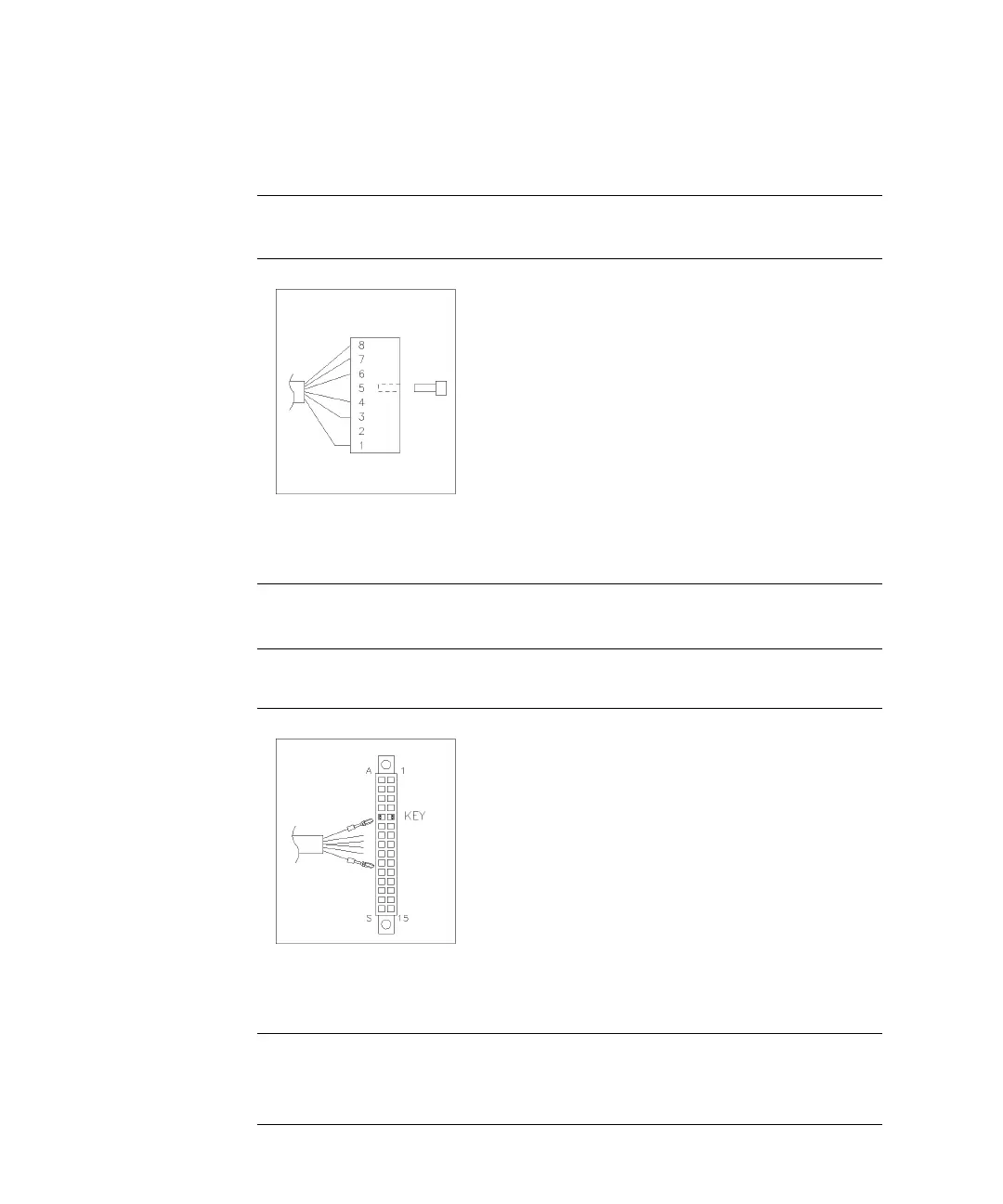

Remote Cables
Agilent 1100 to HP 1090 LC, HP 1040 DAD or Signal Distribution Module
Agilent 1100 to General Purpose
&RQQHFWRU

3LQ
+3
3LQ
$JLOHQW 6LJQDO1DPH
$FWLYH
77/
1 1 - White Digital
ground
NC 2 - Brown Prepare run Low
4 3 - Gray Start Low
7 4 - Blue Shut down Low
8 5 - Pink Not
connected
NC 6 - Yellow Power on High
3 7 - Red Ready High
6 8 - Green Stop Low
NC 9 - Black Start request Low
5 - Key
Connector
01046-60201
Pin
Universal
Pin
Agilent 1100 Signal Name
Active
(TTL)
1 - White Digital
ground
2 - Brown Prepare run Low
3 - Gray Start Low
4 - Blue Shut down Low
5 - Pink Not
connected
6 - Yellow Power on High
7 - Red Ready High
8 - Green Stop Low
9 - Black Start request Low
