Repairing the Autosampler
Metering-Drive Motor and Belt

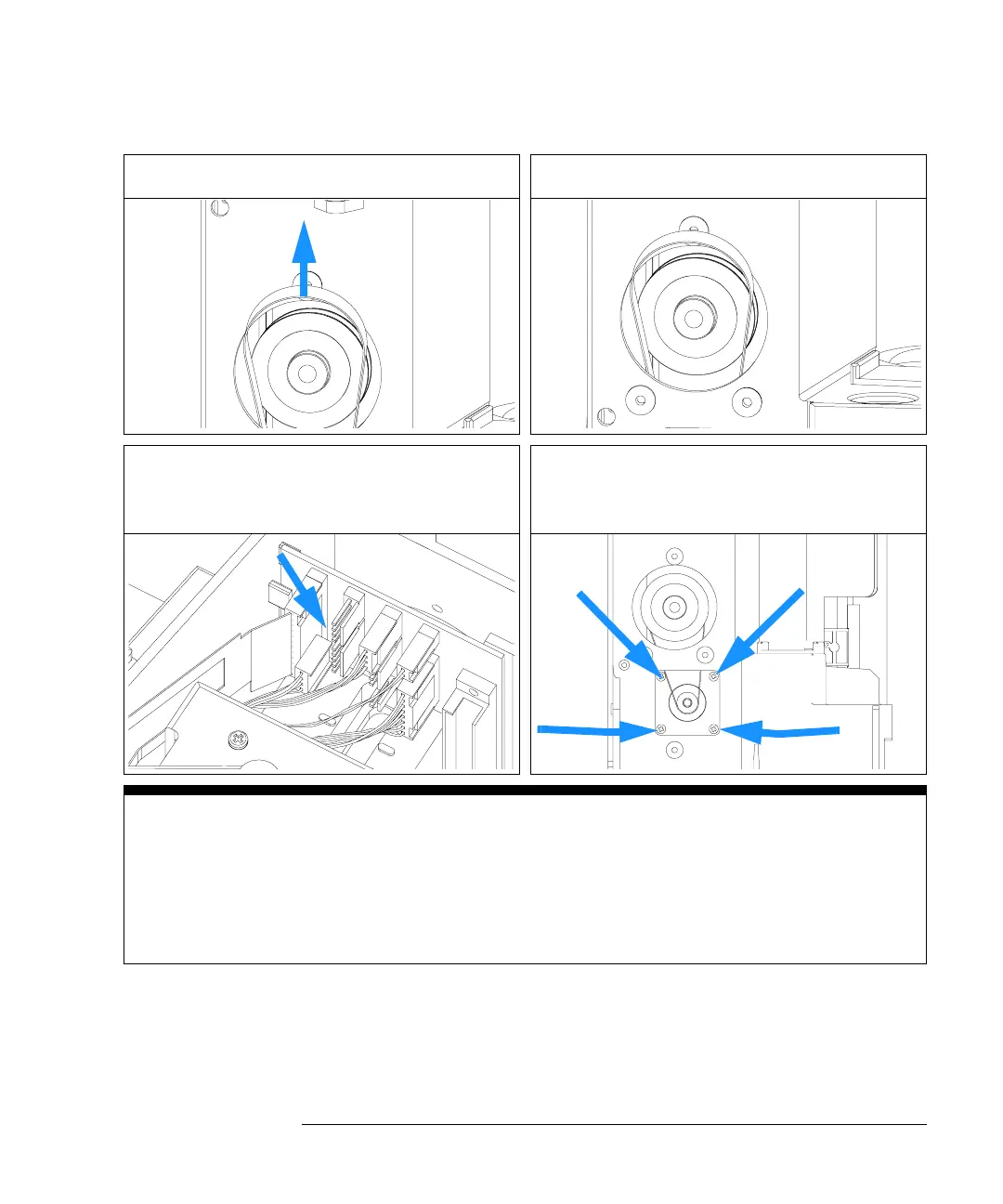

10 Remove the belt. 11 Place the belt over the shaft.
12 Feed the motor cable through to the SUD
board. Connect the cable to (labelled
“Metering M”)
13 Install the motor with the four fixing screws.
Ensure the belt is seated correctly over the
gear and motor shaft.
On completion of this procedure:
❏ Install the sampling unit (page 134).
❏ Install the transport assembly (page 132).
❏ Install the top cover (page 128).
❏ Verify the transport assembly alignment (page 99).
