Agilent Technologies G1313A

25
Installing the Autosampler
Optimizing the Stack Configuration

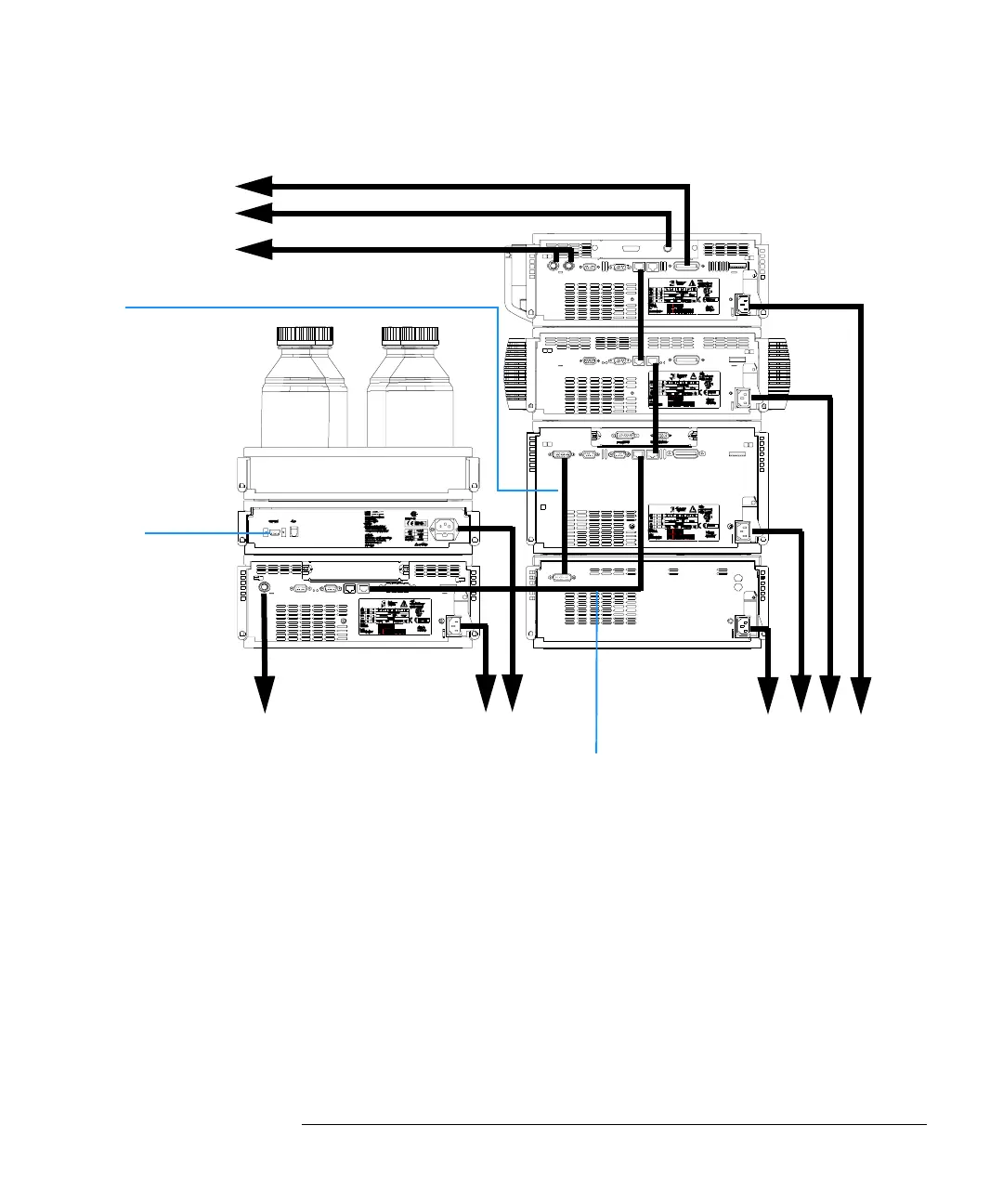

Figure 4 Recommended Stack Configuration for a Thermostatted ALS (Rear View)
GPIB or LAN to
LC ChemStation
Analog signal to
recorder
AC power
Remote
cable
CAN bus cable
Autosampler -
Thermostat cable
AC power
Analog signal to
recorder
