257
Introduction to the Control Module
Screens available from the Analysis screen

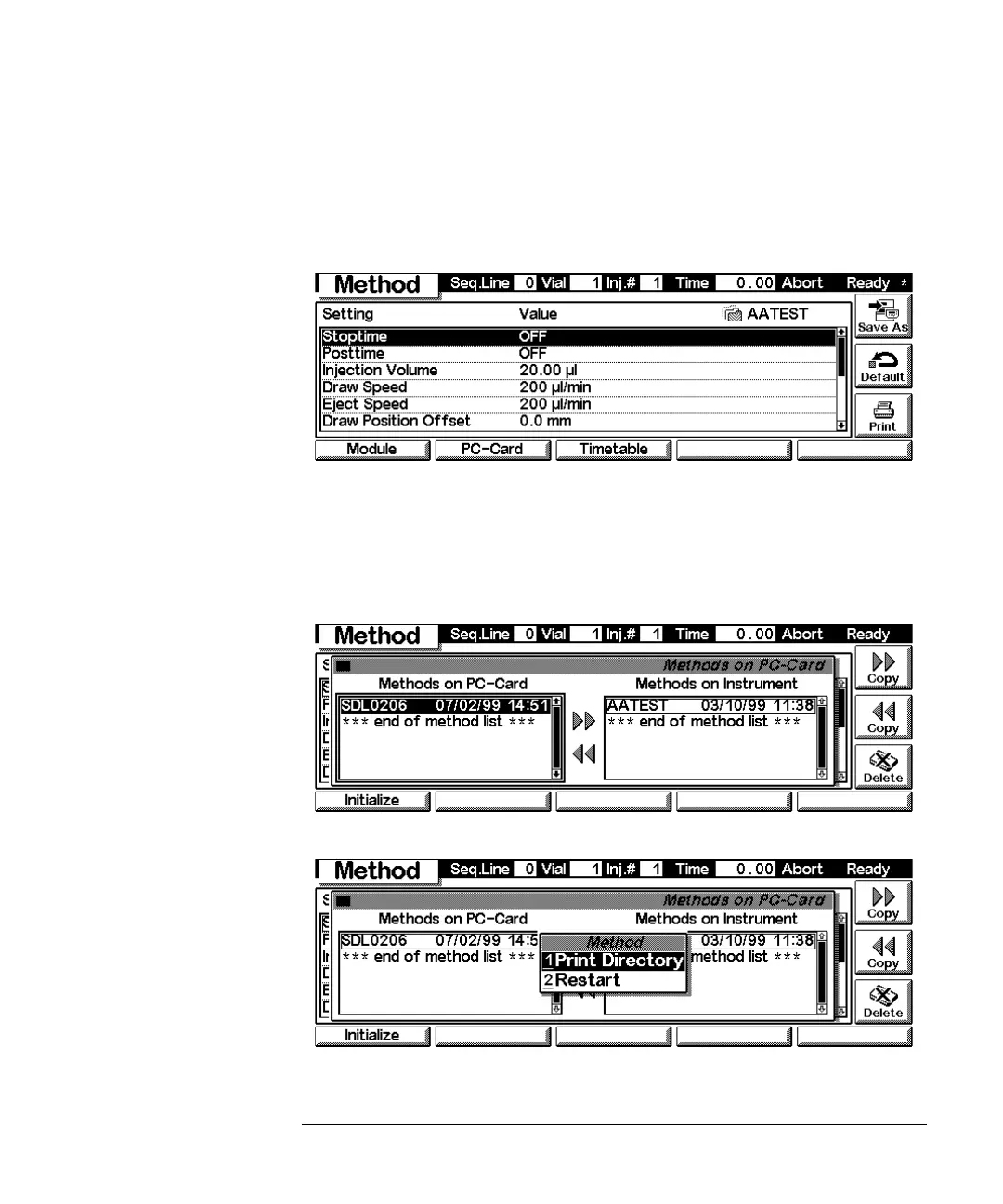

Method screens Use ESC to return to the Analysis screen. Use the F3 key (Method) to view
the parameters in a method and F8 key (Save As) to save the method in the
mdodule(s). The PC-Card key is only active when a PCMCIA card is inserted
in the control module.
Use F2 key (PC-Card) to save a method on a PCMCIA card. Use the
Right/Left arrows to switch between PC-Card and Instrument window. Use
the UP/Down arrows to select the method. Use the F7/F8 keys (Copy) to
enter available signals into the box for selected signals or vice versa. Press
the m-key to open the context sensitive menu.
