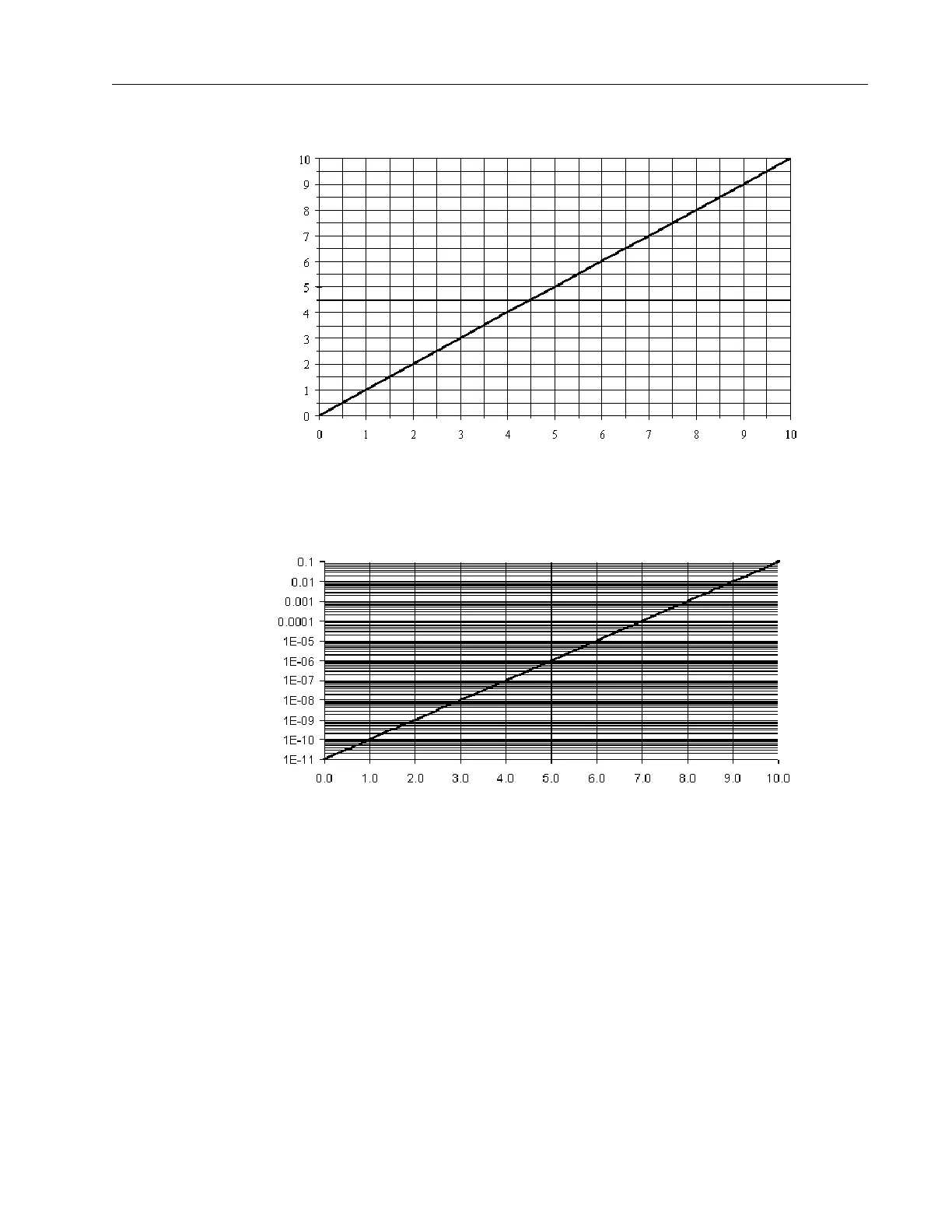

Figure 6-4 Leak Detector Linear Output Voltage
Figure 6-5 Leak Detector Logarithmic Output Voltage
Output Voltage = Leak Rate Mantissa
Output Voltage (Volts)*Standard and High Sensitivity Versions
Leak Rate (Std. cc/Sec)
Leak Rate Mantissa = Output Voltage
V = LOG (Leak Rate X 10
11
)
Output Voltage
Leak Rate atm-cc/Sec
Leak Rate = 10
V
/10
11
