Agilent Technologies Helium Leak Detector
DRAFT 12/11/17
31

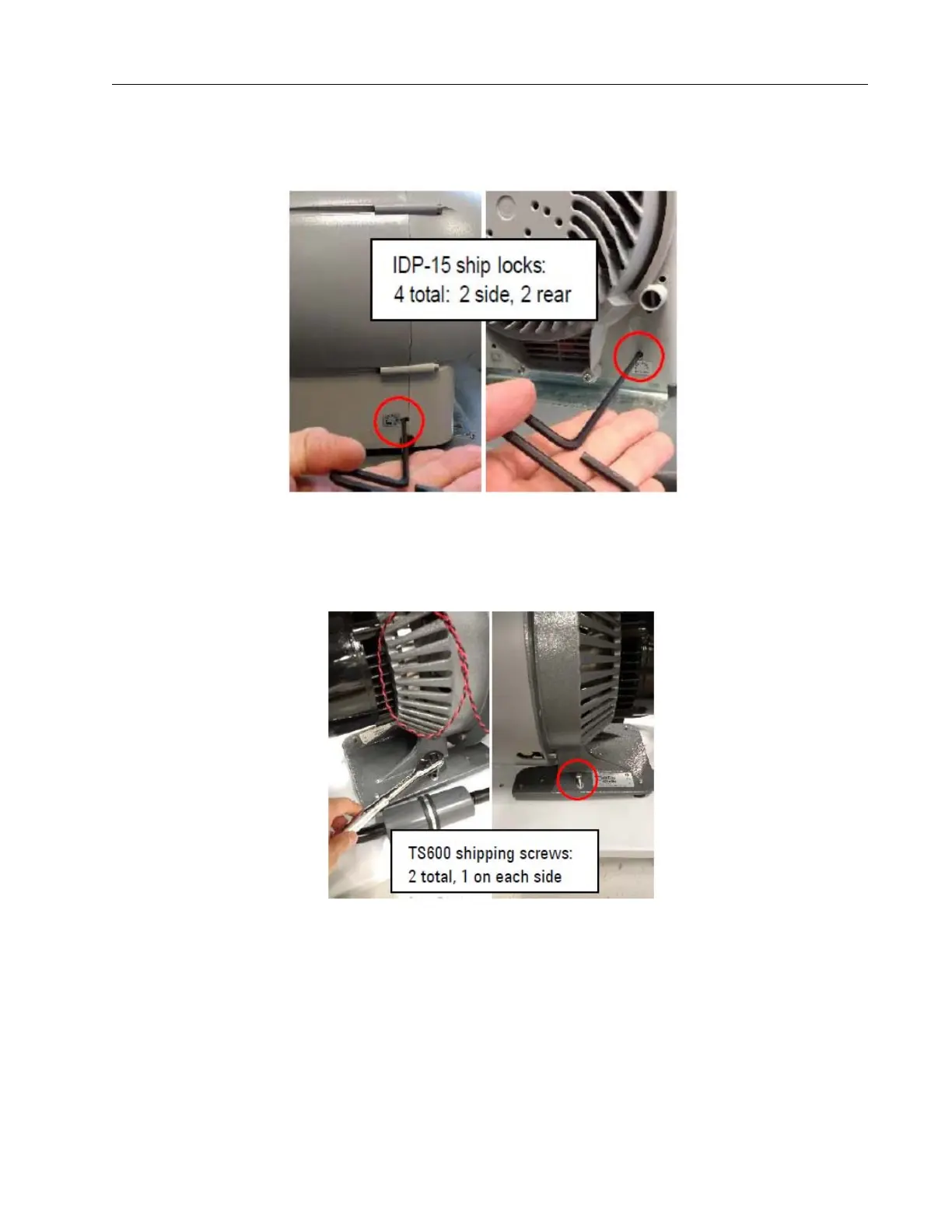

Use the provided 4 mm T-handle Allen wrench to turn the locks clockwise to
loosen; the IDP-15 ship locks only tighten/loosen, and are not removable
(Figure 1-8).
Figure 1-8 IDP-15 Shipping Locks Loosening
❑ For the TS620 pump, use a 10 mm driver to remove the shipping bolts (one on each
side of the pump base) (
Figure 1-9).
Figure 1-9 TS620 Shipping Locks Removal
