Agilent Technologies Helium Leak Detector
DRAFT 12/11/17
65
Section 4. Calibration Screen
4.1 Calibration Set-Up
❑ Press Calibration Menu screen.
The Calibration screen appears (Figure 4-1).
Use this screen to:
❑ View the value and expiration date of the Internal Calibrated Leak
❑ Enter the External Calibrated leak value
❑ Select whether to use an Internal or external calibrated leak
❑ Set the calibration mode: Full or Fast Calibration
The calibration routine can only be executed while in Test/FineTest.

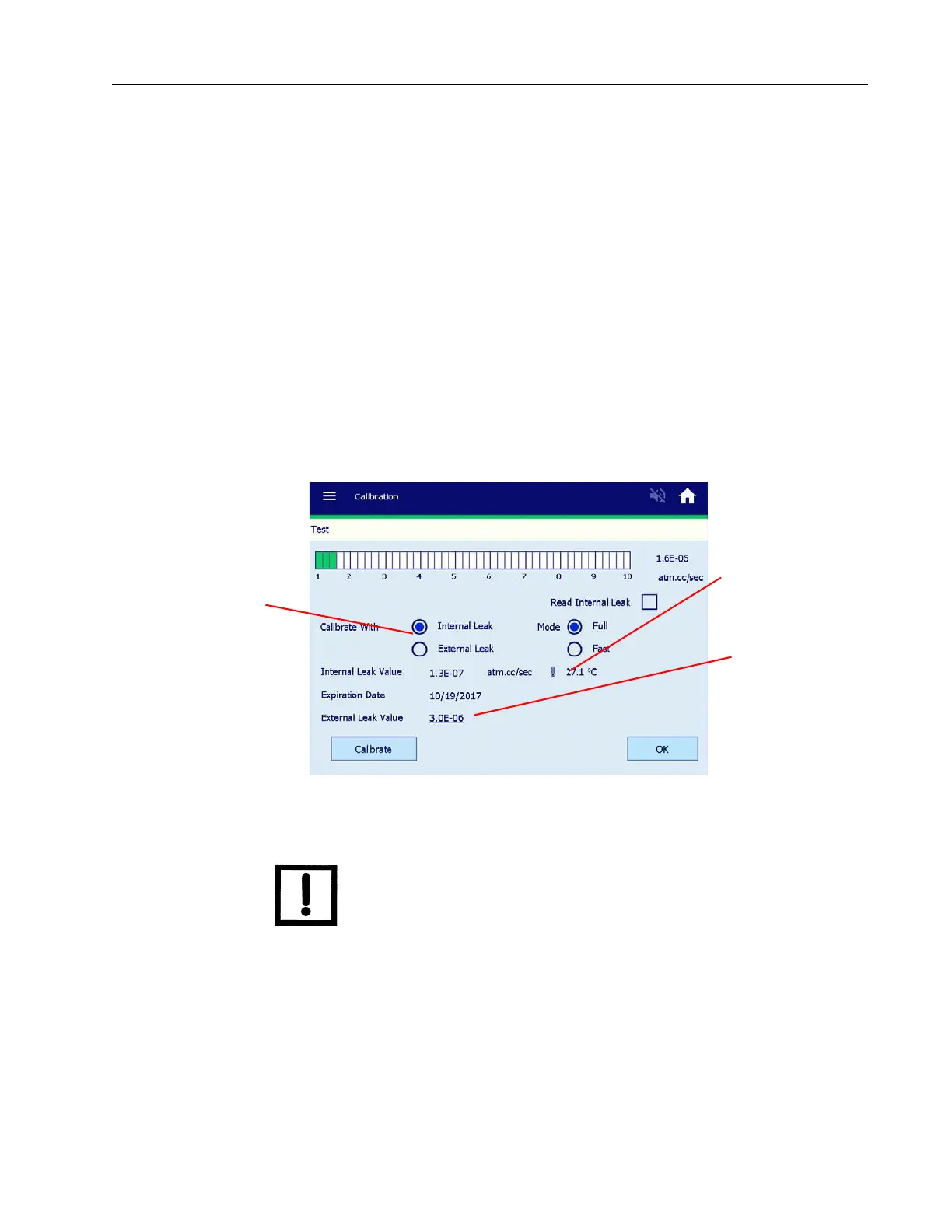

Figure 4-1 Calibration Set-Up
NOTE The internal leak is a factory supplied helium leak internal to
the leak detector. In order to perform an external calibration,
you must supply a separate calibrated leak and mount it on top
of the leak detector.
Shows the
temperature
of the internal leak.
Choose the
Calibration
Typ e.
Enter the
External Leak
Value.
Select leak used
for autocal.
compensated value
To Next Page
