7.4.4 Maintenance: Valve Control
Use this screen to monitor and control the valves in the leak detector vacuum system for
troubleshooting purposes. See Figure 7-10 on page 123 for an illustration of the leak
detector vacuum system.

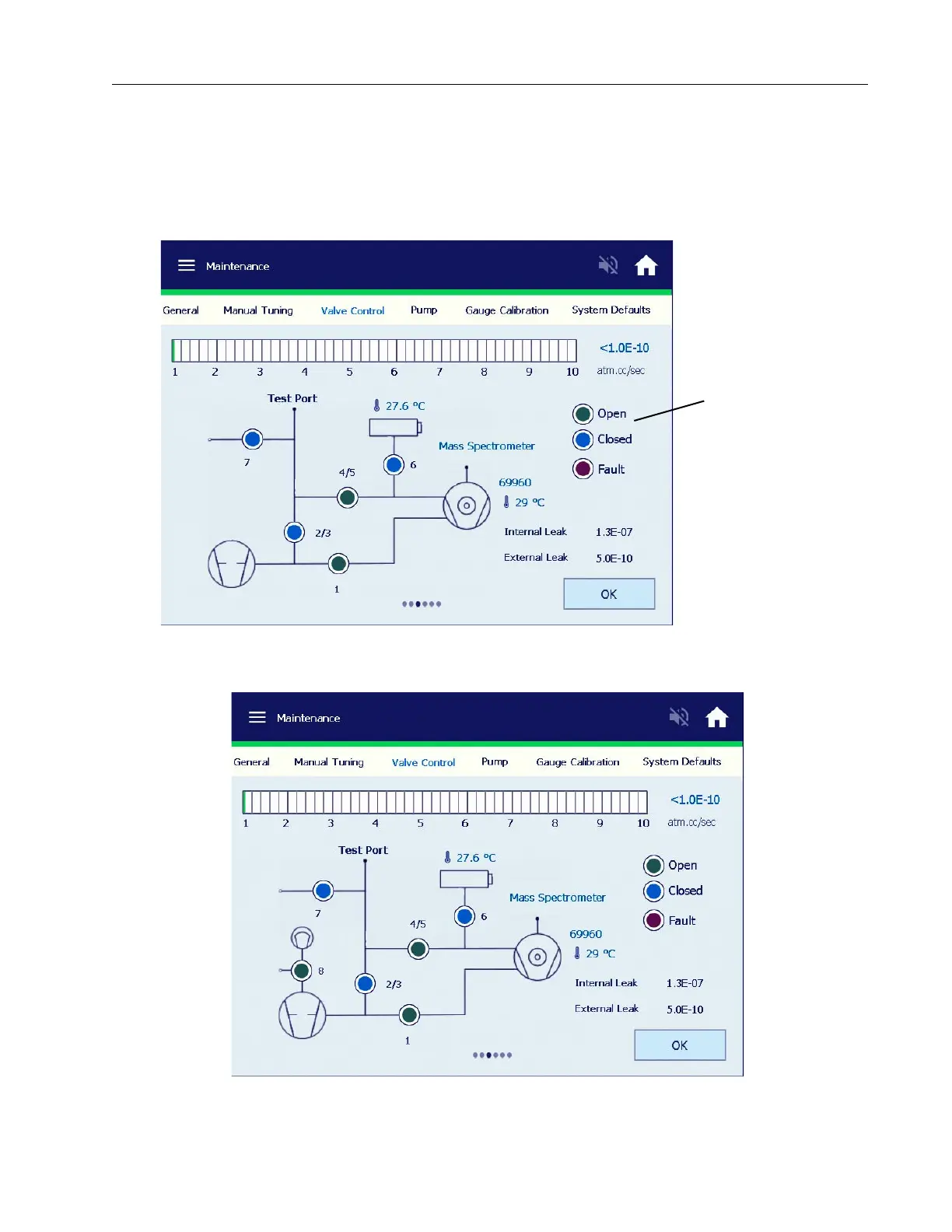

Figure 7-8 Maintenance: Valve Control
Figure 7-9 Valve Control Models G8610B, G8611B, G8611C, G8612B & G8612C
Valve Status
- color code
To Next Page
